UAV PPK Solution with Base
Tersus UAV PPK Solution with Base includes BX306 PPK Receiver, AX3705 Helix Antenna, Tersus GeoPix Software and David Base/Rover Kit Network Mode.
UAV PPK(BX306)_640x340_190620_v1.2.png

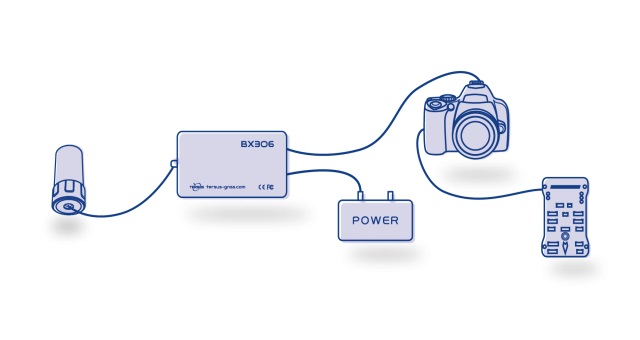

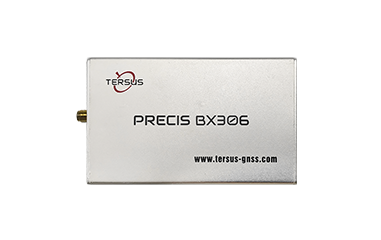

Tersus UAV PPK solution with Base includes BX306 PPK Receiver, AX3705 Helix Antenna (or AX3703 GNSS Aviation Antenna as another option), David Base Kit Network Mode and Tersus GeoPix Software. BX306 PPK Receiver supports multi-constellations and dual-frequencies. It has in-built 4GB memory (eMMC) for GNSS observation data recoding. Very small and light AX3705 Helix Antenna and AX3703 GNSS Aviation Antenna are designed for UAV applications.

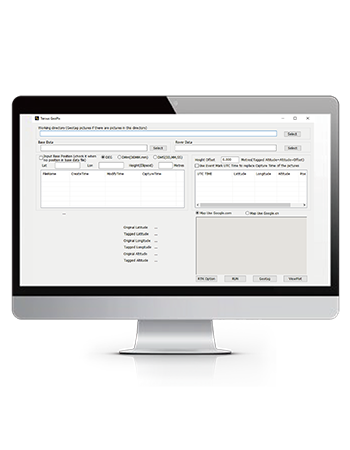

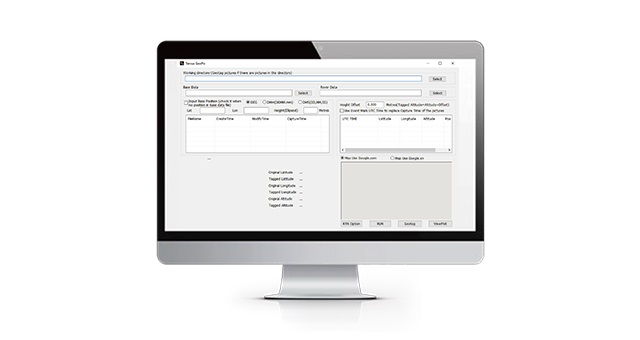

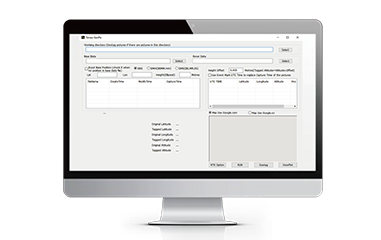

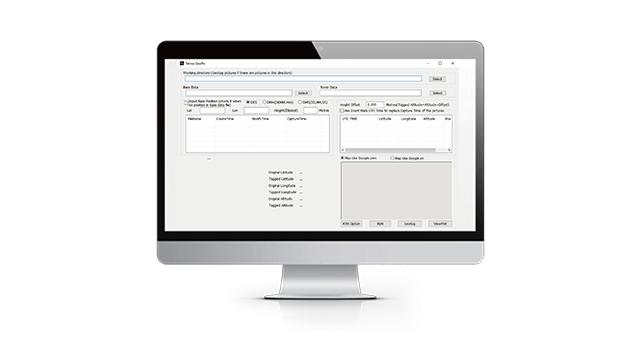

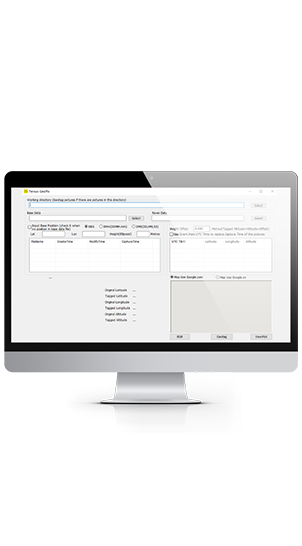

Tersus GeoPix integrates the functions of GNSS observation post processing, Event Mark interpolation and geotagging in EXIF. By clicking one button after input all necessary data, the software provides the result directly as input for image processing software. Tersus GeoPixis part of Tersus Tool Suite which can be downloaded from Tersus official website.





David GNSS Receiver - Base Mobile (1) 640x340px.jpg

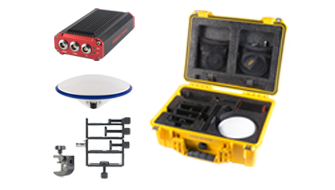

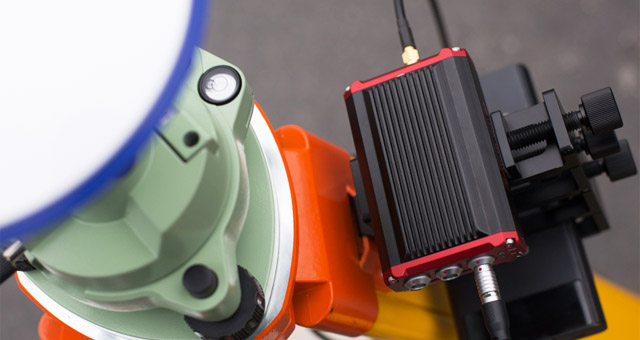

We provide David Base/Rover Kit Network Mode as default kit as Base Station working with UAV PPK Solution. It can not only work as Base Station to record GNSS raw data for post processing, but also as an easy-to-use Rover receiver to measure Ground Control Points for photogrammetry. David Base and Rover are exchangeable, but the accessories of them have some difference. Please check the details in David Product Page.

*For detailed list of items, please check Item List - UAV PPK Solution with Base
Features
Specifications
In the Box
Documents
Videos
Supports 384 channels
Simple software interface and simple workflow
Automatic processing GNSS data and geotagging images by one button click
Show the result in trajectory plot and the images on online map
Provide PPK result in both EXIF and text file
The result can be directly used by image processing software, i.e., Pix4D, Agrisoft, etc.
Support Base Station data from CORS or other brands GNSS Receiver.
Signal Tracking
+
Signal Tracking
GPS L1/L2
GLONASS L1/L2
BeiDou B1/B2
GNSS Channels
384
Positioning
+
Standard (RMS)
     - Horizontal
1.5m
     - Vertical
3.0m
Observation
+
C/A Code (zenith direction)
10cm
P Code (zenith direction)
10cm
Carrier Phase (zenith direction)
1mm
Performance
+
Time to First Fix
     - Cold Start
<50s
     - Warm Start
<30s
Timing Accuracy (RMS)
20ns
Velocity Accuracy (RMS)
0.03m/s
Initialization (typical)
<10s
Initialization Reliability
>99.9%
Physical & Electrical
+
Size
95 x 57 x 24 mm
Weight
153g
Input Voltage
5~28 V
Power Consumption (typical)
2.8W
Active Antenna Input Impedance
50Ω
Antenna Connector
SMA female x1
COM Baud Rate
Up to 460800bps
Operating Temperature
-40℃ ~ +85℃
Data
+
Storage
In-built 4GB memory
Correction
RTCM 2.x/3.x/CMR/CMR+
Output
NMEA-0183; Tersus Binary Format
Max. Update Rate
20Hz
Log & Command Compatible
NovAtel Protocol
Communication
+
Serial Ports
LVTTL x2
USB Ports
USB 2.0 device x1
CAN Ports
ISO/DIS 11898 x1*
PPS Ports
LVTTL x1
Event Mark
LVTTL x1
Remarks:
* This port’s function is related to firmware version.
Item List
BX306 PPK Receiver with cables of power supply, event mark and serial port
AX3705 Helix Antenna
Hot Shoe adaptor
Tersus GeoPix Software
Tersus GNSS Base Station: David Base/Rover Kit Network Mode (Base and Rover exchangeable, please indicate when you place order)
  • UAV PPK Solution Brochure
    Release Date: 2019-06-19 Version:1.2
  • User Manual_UAV PPK Solution
    Release Date: 2019-06-17 Version:1.2
  • UAV PPK Solution with Base Datasheet
    Release Date: 2019-06-20 Version:2.1
  • User Manual For BX Series GNSS Receiver
    Release Date: 2019-09-11 Version:2.3
  • GNSS OEM Boards & Receivers Brochure
    Release Date: 2019-08-30 Version:2.2
  • Item List - UAV PPK Solution with Base
    Release Date: 2019-06-19 Version:1.3
