BX316D
GNSS Real-time Kinematic RTK Board with Heading
GNSS OEM Boards - BX316D (1) 640x340px.jpg

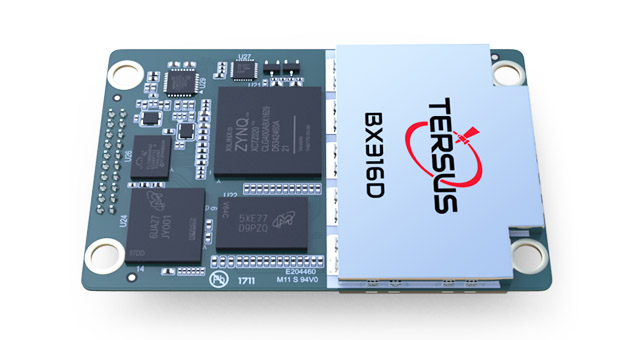

The BX316D is a GNSS RTK board for providing accurate positioning and heading information. This board provides real-time, cost efficient, and cm-level positioning as well as flexible interfaces for a variety of applications, such as precision navigation, precision agriculture, surveying, and UAVs.
GNSS OEM Boards - BX316D (2) 640x340px.jpg

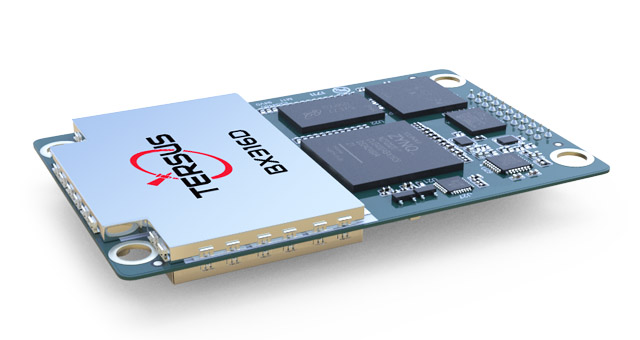

The BX316D is pin-to-pin compatible with NovAtel OEM617D. It is designed for take-up by original equipment manufacturers and system integrators. In-built 4GB memory supports data collection. Its popular interface and log/command format make it compatible with most of the OEM boards in market.
Features
Specifications
Documents
Videos
Supports RTK positioning mode or RTK positioning + heading mode, with software configurable modes
Up to 20Hz RTK solution updates and raw data output
Supports 384 channels
Pin-to-pin compatible with Novatel OEM617D
Log/command compatible with NovAtel protocol
Supports PPS output and event mark input
Supports in-built 4GB memory, which makes data collection easy
Signal Tracking
+
Single Antenna
GPS L1/L2
GLONASS L1/L2
BeiDou B1/B2
Dual Antenna
Primary: GPS L1/L2, GLONASS L1/L2
Secondary: GPS L1, GLONASS L1
or
Primary: GPS L1/L2, BeiDou B1/B2
Secondary: GPS L1, BeiDou B1
GNSS Channels
384
Positioning
+
Single Point Positioning Accuracy (RMS)
     - Horizontal
1.5m
     - Vertical
3.0m
RTK Positioning Accuracy (RMS)
     - Horizontal
10mm + 1ppm
     - Vertical
15mm + 1ppm
Observation
+
C/A Code (zenith direction)
10cm
P Code (zenith direction)
10cm
Carrier Phase (zenith direction)
1mm
Heading 1m Baseline (RMS)
0.1°
Performance
+
Time to First Fix
     - Cold Start
<50s
     - Warm Start
<30s
Timing Accuracy (RMS)
20ns
Velocity Accuracy (RMS)
0.03m/s
Initialization (typical)
<10s
Initialization Reliability
>99.9%
Physical & Electrical
+
Size
46x71x12mm (OEM board)

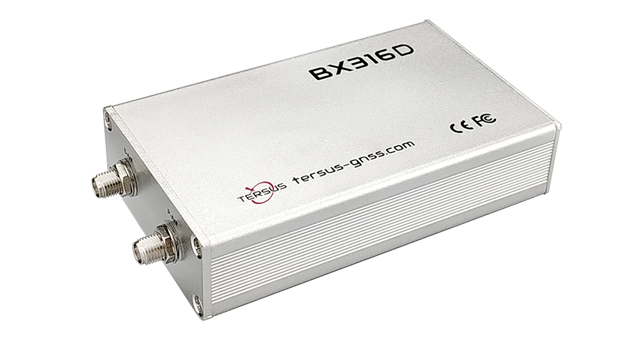

100x57x24mm (Enclosure)
Weight
23g (OEM board)
150g (Enclosure)
Input Voltage
3.3V (OEM board)
5~28V (Enclosure)
Power Consumption (typical)
2.8W
Active Antenna Input Impedance
50Ω
Antenna Connector
MMCX female x2 (OEM board)
SMA female x2 (Enclosure)
COM Baud Rate
Up to 460800bps
Pin-to-Pin Compatible
NovAtel 617D
Operating Temperature
-40℃ ~ +85℃
Data
+
Correction
RTCM 2.x/3.x/CMR/CMR+
Output
NMEA-0183; Tersus Binary Format
Max. Update Rate
20Hz
Log & Command Compatible
NovAtel Protocol
Storage
In-built 4GB memory
Communication
+
Serial Ports
LVTTL x2
USB Ports
USB device x1
CAN Ports
ISO/DIS 11898 x1 *
PPS Ports
LVTTL x1
Event Mark
LVTTL x1
Remarks:
* This port’s function is related to firmware version.
Optional Accessory
+
Tersus GNSS instrument transport case
AX3702 GNSS Antenna
3m GNSS antenna cable with TNC/SMA connectors
  • BX316D Datasheet
    Release Date: 2019-02-12 Version:2.5
  • User Manual For BX Series GNSS Receiver
    Release Date: 2018-07-03 Version:1.0
  • GNSS OEM Boards & Receivers Brochure
    Release Date: 2019-03-20 Version:2.1
