BX306Z
GNSS Real-time Kinematic RTK Board
GNSS OEM Boards - BX306Z (1) 640x340px.jpg

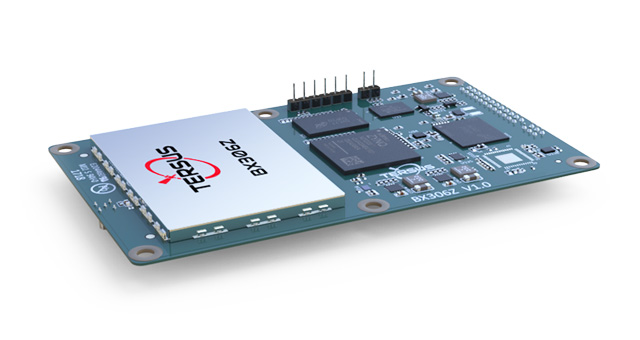

The BX306Z is a cost-efficient GNSS RTK board for providing cm-level positioning accuracy and raw measurement output, which can be integrated with autopilots and inertial navigation units.
GNSS OEM Boards - BX306Z (2) 640x340px.jpg

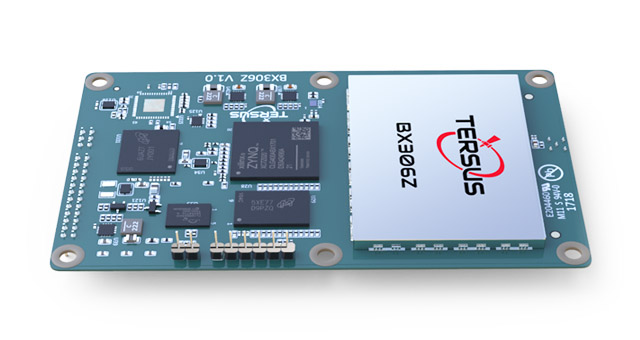

The BX306Z board supports three constellations (GPS L1/L2, GLONASS G1/G2, and BeiDou B1/B2) to improve the continuity and reliability of the RTK solution even in harsh environments. It features compatibility with other GNSS boards in the market via flexible interfaces, smart hardware design, and commonly used log/command formats.
Features
Specifications
Documents
Videos
Supports GPS L1/L2, GLONASS G1/G2, and BeiDou B1/B2
Supports up to 20Hz RTK solution updates and raw data output
IMU raw data output
Pin-to-pin compatible with Trimble BD970
Log/command compatible with NovAtel protocol
Supports PPS output and event mark input
Signal Tracking
+
Single Antenna
GPS L1/L2
GLONASS G1/G2
BeiDou B1/B2
Positioning
+
Standard (RMS)
     - Horizontal
1.5m
     - Vertical
3.0m
RTK (RMS)
     - Horizontal
10mm + 1ppm
     - Vertical
15mm + 1ppm
Observation
+
C/A Code (zenith direction)
10cm
P Code (zenith direction)
10cm
Carrier Phase (zenith direction)
1mm
Performance
+
Time to First Fix
      - Cold Start
<50s
      - Warm Start
<30s
Timing Accuracy (RMS)
20ns
Velocity Accuracy (RMS)
0.03m/s
Initialization (typical)
<10s
Initialization Reliability
>99.9%
Physical & Electrical
+
Size
100 x 60 x 12mm
Weight
44g
Input Voltage
3.3V DC
Active Antenna Input Impedance
50Ω
Antenna Connector
MMCX female x1
COM Baud Rate
Up to 921600bps
Pin-to-Pin Compatible
Trimble BD970
Operating Temperature
-40℃ ~ +85℃
Data
+
Correction
RTCM 2.x/3.x/CMR/CMR+
Output
NMEA-0183; Tersus Binary Format
Max. Update Rate
20Hz
Log & Command Compatible
NovAtel Protocol
Communication
+
Serial Ports
LVTTL x1, RS232 x1
USB Ports
USB device x1
CAN Ports
ISO/DIS 11898 x2 *
PPS Ports
LVTTL x1
Event Mark
LVTTL x2 *
Ethernet
10/100M Base-T x1 *
Remarks:
* This port’s function is related to firmware version.
  • BX306Z Datasheet
    Release Date: 2018-04-14 Version:2.0
  • Log & Command Reference for Tersus BX GNSS OEM Boards
    Release Date: 2018-04-20 Version:1.0
  • GNSS OEM Boards & Receivers Brochure
    Release Date: 2018-04-18 Version:2.0
  • Test Report_Tersus GNSS OEM Boards RTK Performance Competitive Analysis
    Release Date: 2018-05-02 Version:1.0
