BX305 GNSS Kit
With 433/915MHz Radio

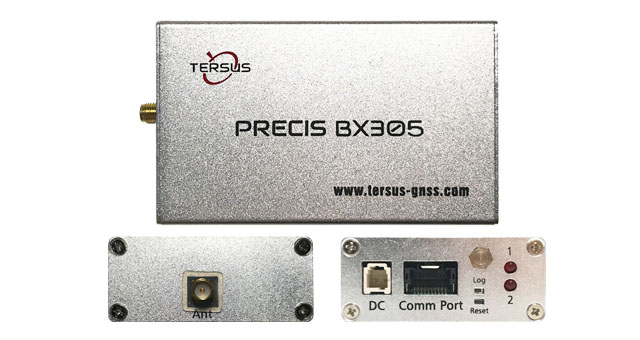

GNSS OEM Boards - BX305 (1) 640x340px.jpg
The BX305 is a compact GNSS RTK receiver which offers real-time, centimeter-level positioning capability as well as flexible interfaces for a number of applications, such as precision navigation, precision agriculture, surveying, and UAVs. The BX305 can be integrated into other host devices or can serve as an independent positioning system that is dedicated to delivering high-precision, reliable position information.

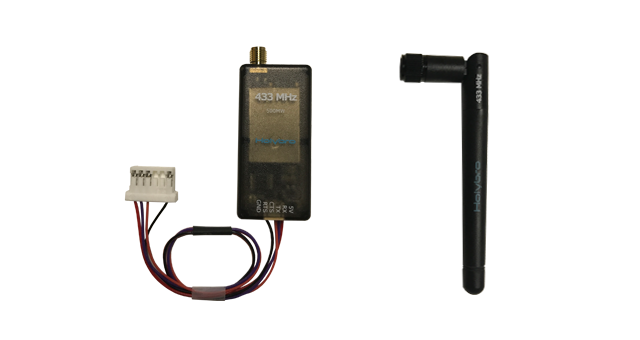

GNSS Easy Kits - BX306 KIT (4) 640x340px.png
About the 433/915 MHz RadiosThe radio is available in 915 MHz (US) and 433 MHz (Europe). The two radio transmitters/receivers in a RTK system need to be able to pass RTCM data from the base station to the rover receiver. The bundle includes a basic low-power radio link that is designed for short baseline applications. It has a transmit power of up to 100mW, which can support communications over approximately one kilometer range.
Features
Specifications
In the Box
Documents
Videos
Supports GPS L1/L2, GLONASS L1, and BeiDou B1/B3
Provides centimeter-level positioning accuracy
Up to 20Hz position/velocity/time solutions
Serial ports with LVTTL
Easy to integrate with Pixhawk and other autopilots
External antenna input through SMA connector
Signal Tracking
+
Single Antenna
GPS L1/L2
GLONASS L1
BeiDou B1/B3
Positioning
+
RTK (RMS)
     - Horizontal
10mm + 1ppm
     - Vertical
15mm + 1ppm
Observation
+
C/A Code (zenith direction)
10cm
P Code (zenith direction)
10cm
Carrier Phase (zenith direction)
1mm
Performance
+
Time to First Fix
     - Cold Start
<50s
     - Warm Start
<30s
Timing Accuracy (RMS)
20ns
Velocity Accuracy (RMS)
0.03m/s
Initialization (typical)
<10s
Initialization Reliability
>99.9%
Physical & Electrical
+
Size
92 x 54 x 13mm
Weight
104g
Input Voltage
5V DC
Power Consumption (typical)
1.56W
Active Antenna Input Impedance
50Ω
Max. Antenna Bias Current Draw
100mA
GNSS Input Sensitivity
-85 dBm ~ -105 dBm
Antenna Connector
SMA female x1
COM Baud Rate
Up to 230400bps
Operating Temperature
-40℃ ~ +85℃
Data
+
Correction
RTCM 2.x/3.x/CMR
Max. Update Rate
20Hz
Communication
+
Serial Ports
LVTTL x3
PPS Ports
LVTTL x1
BX305 GNSS Kit includes
2 x BX305 RTK receivers
2 x GNSS antennas
2 x 3m GNSS antenna cables
2 x 433 (or 915) MHz radio modems
2 x 433 (or 915) MHz antennas
2 x BX305 radio cable assemblies
2 x UART TTL-USB converters
Shutter Synchronization with PPS Signal Demo (BX305)
BX305 Quick Start Video
How to connect BX305 to CORS network with external Bluetooth module and mobile phone
Log data with external data logger
