BX305 GNSS Kit (HRS)
With High-end Radio (RS05R)
GNSS OEM Boards - BX305 (1) 640x340px.jpg

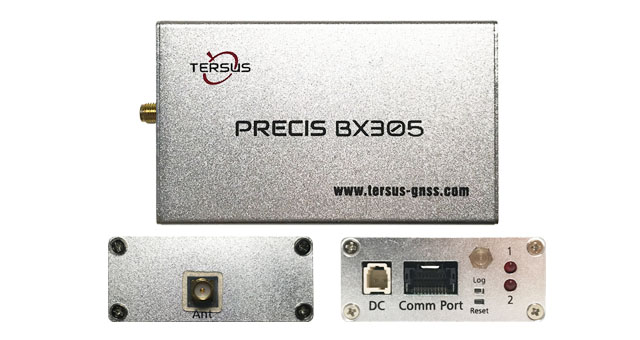

The BX305 is a compact GNSS RTK receiver which offers real-time, centimeter-level positioning capability as well as flexible interfaces for a number of applications, such as precision navigation, precision agriculture, surveying and UAVs. The BX305 can be integrated into other host devices or can serve as an independent positioning system that is dedicated to delivering high-precision, reliable position information.
GNSS Accessories - RS05R 640x340px.png

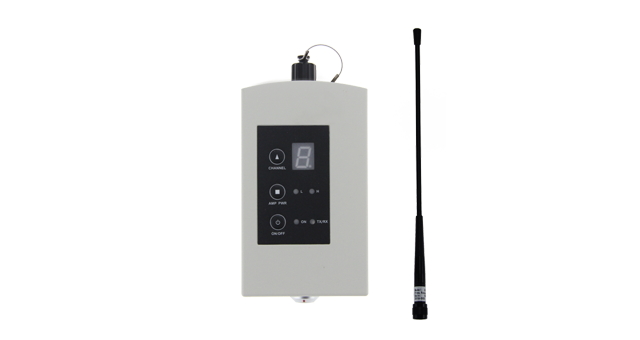

About the RS05R High-end RadioThe Tersus radio station RS05R is a rover radio solution for wireless applications. It provides reliable data communications for mission-critical applications where a combination of stability, superior performance and long communication range are required. The RS05R is a lightweight, ruggedized UHF receiver designed for digital radio communications between 410 MHz and 470 MHz in either 12.5 kHz or 25 kHz channels, which can be widely used in GNSS/RTK surveying and precise positioning systems. The RS05R is equipped with a LED display and a keypad, which can be used for checking the operating status, changing the operating channel, and transmitter power level.
Features
Specifications
In the Box
Documents
Videos
Supports GPS L1/L2, GLONASS L1, and BeiDou B1/B3
Provides centimeter-level positioning accuracy
Up to 20Hz position/velocity/time solutions
Serial ports with LVTTL
Easy to integrate with Pixhawk and other autopilots
External antenna input through SMA connector
Signal Tracking
+
Single Antenna
GPS L1/L2
GLONASS L1
BeiDou B1/B3
Positioning
+
Timing Accuracy (RMS)
20ns
RTK (RMS)
Velocity Accuracy (RMS)
0.03m/s
     - Horizontal
10mm + 1ppm
Initialization (typical)
<10s
Initialization Reliability
>99.9%
     - Vertical
15mm + 1ppm
Observation
+
C/A Code (zenith direction)
10cm
P Code (zenith direction)
10cm
Carrier Phase (zenith direction)
1mm
Performance
+
Time to First Fix
     - Cold Start
<50s
     - Warm Start
<30s
Physical & Electrical
+
Size
92 x 54 x 13mm
Weight
104g
Input Voltage
5V DC
Power Consumption (typical)
1.56W
Active Antenna Input Impedance
50Ω
Max. Antenna Bias Current Draw
100mA
GNSS Input Sensitivity
-85 dBm ~ -105 dBm
Antenna Connector
SMA female x1
COM Baud Rate
Up to 230400bps
Operating Temperature
-40℃ ~ +85℃
Data
+
Correction
RTCM 2.x/3.x/CMR
Max. Update Rate
20Hz
Communication
+
Serial Ports
LVTTL x3
PPS Ports
LVTTL x1
BX305 GNSS Kit (HRS) includes
2 x BX305 RTK receivers
2 x UART TTL-USB converters
2 x TTL-RS232 converters
2 x 20-pin external cables
2 x RS05R radio station cable assemblies
2 x RS05R radio station antennas
2 x RS05R radio station modems
2 x 3m GNSS antenna cables
2 x GNSS antennas
2 x power cables
  • BX305 GNSS Kit (HRS) Datasheet
    Release Date: 2018-07-25 Version:2.1
  • BX305 User Manual
    Release Date: 2018-04-20 Version:1.0
  • BX305 Quick Start Guide
    Release Date: 2018-04-20 Version:1.0
Shutter Synchronization with PPS Signal Demo (BX305)
BX305 Quick Start Video
How to connect BX305 to CORS network with external Bluetooth module and mobile phone
Log data with external data logger
