BX305
GNSS Real-time Kinematic RTK Board

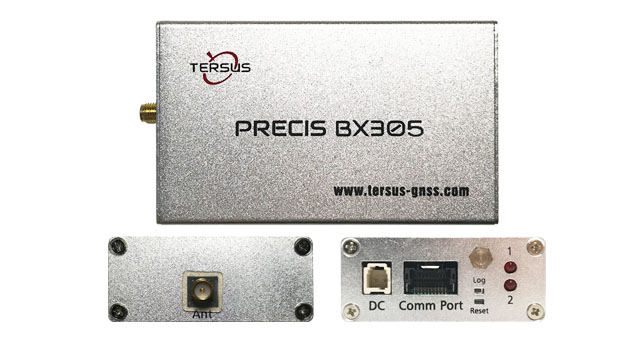

GNSS OEM Boards - BX305 (1) 640x340px.jpg
The BX305 is a compact GNSS RTK receiver which offers real-time, centimeter-level positioning capability as well as flexible interfaces for a number of applications, such as precision navigation, precision agriculture, surveying, and UAVs.
GNSS OEM Boards - BX305 (2) 640x340px.jpg
The BX305 can be integrated into other host devices or can serve as an independent positioning system that is dedicated to delivering high-precision, reliable position information.
Features
Specifications
Documents
Videos
Supports GPS L1/L2, GLONASS L1, and BeiDou B1/B3
Provides centimeter-level positioning accuracy
Up to 20Hz position/velocity/time solutions
Serial ports with LVTTL
Easy to integrate with Pixhawk and other autopilots
External antenna input through SMA connector
Signal Tracking
+
Single Antenna
GPS L1/L2
GLONASS L1
BeiDou B1/B3
Positioning
+
RTK (RMS)
     - Horizontal
10mm + 1ppm
     - Vertical
15mm + 1ppm
Observation
+
C/A Code (zenith direction)
10cm
P Code (zenith direction)
10cm
Carrier Phase (zenith direction)
1mm
Performance
+
Time to First Fix
     - Cold Start
<50s
     - Warm Start
<30s
Timing Accuracy (RMS)
20ns
Velocity Accuracy (RMS)
0.03m/s
Initialization (typical)
<10s
Initialization Reliability
>99.9%
Physical & Electrical
+
Size
92 x 54 x 13mm
Weight
104g
Input Voltage
5V DC
Power Consumption (typical)
1.56W
Active Antenna Input Impedance
50Ω
Max. Antenna Bias Current Draw
100mA
GNSS Input Sensitivity
-85 dBm ~ -105 dBm
Antenna Connector
SMA female x1
COM Baud Rate
Up to 230400bps
Operating Temperature
-40℃ ~ +85℃
Data
+
Correction
RTCM 2.x/3.x/CMR
Max. Update Rate
20Hz
Communication
+
Serial Ports
LVTTL x3
PPS Ports
LVTTL x1
