UAV PPK Solution
Tersus UAV PPK solution includes BX316R PPK Receiver, AX3705 Helix Antenna and Tersus GeoPix Software.

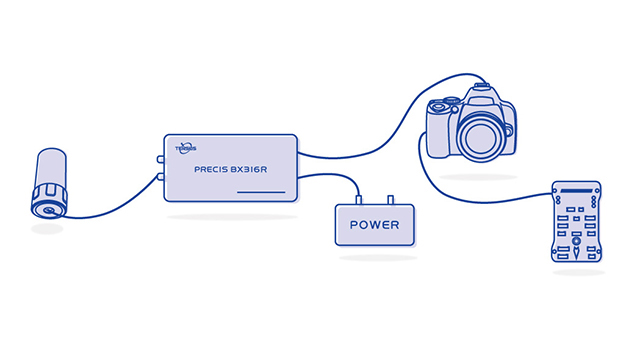

Tersus UAV PPK solution includes BX316R PPK Receiver, AX3705 Helix Antenna and Tersus GeoPix Software. BX316R PPK Receiver supports multi-constellations and dual-frequencies. It has in-built 4G memory for GNSS observation data recoding. Very small and light AX3705 Helix Antenna is designed for UAV applications.

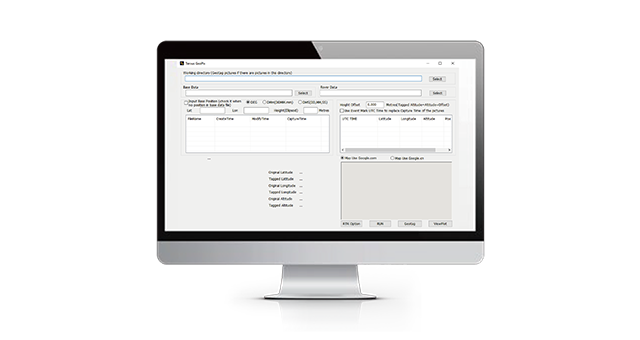

Tersus GeoPix integrates the functions of GNSS observation post processing, Event Mark interpolation and geotagging in EXIF. By clicking one button after input all necessary data, the software will provide the result directly as input for image processing software.
Why use Tersus PPK solution for UAV photogrammetry
Tersus PPK solution dramatically reduces time and cost. It can significantly reduce ground control points (GCPs) or even eliminate the demand for GCPs. There is no need of real-time RTK correction in this solution. Tersus PPK solution combines forward and backward filter during post processing and it can provide more reliable positioning and higher fixing rate.
Features
Specifications
In the Box
Documents
Videos
Simple software interface and simple workflow
Automatic processing GNSS data and geotagging images by one button click
Show the result in trajectory plot and the images on online map
Provide PPK result in both EXIF and text file
The result can be directly used by image processing software, i.e., Pix4D, Agrisoft, etc.
Support Base Station data from CORS or other brands GNSS Receiver.
Signal Tracking
+
Single Antenna
GPS L1/L2
GLONASS L1/L2
BeiDou B1/B2
Dual Antenna
Primary: GPS L1/L2, GLONASS L1/L2
Secondary: GPS L1, GLONASS L2
or
Primary: GPS L1/L2, BeiDou B1/B2
Secondary: GPS L1, BeiDou B2
Positioning
+
Standard (RMS)
     - Horizontal
1.5m
     - Vertical
3.0m
Observation
+
C/A Code (zenith direction)
10cm
P Code (zenith direction)
10cm
Carrier Phase (zenith direction)
1mm
Performance
+
Time to First Fix
     - Cold Start
<50s
     - Warm Start
<30s
Timing Accuracy (RMS)
20ns
Velocity Accuracy (RMS)
0.03m/s
Initialization (typical)
<10s
Initialization Reliability
>99.9%
Physical & Electrical
+
Size
108 x 54 x 12mm
Weight
44g
Input Voltage
5V~12V DC
Power Consumption (typical)
3.5W
Active Antenna Input Impedance
50Ω
Antenna Connector
SMA female x2
COM Baud Rate
Up to 921600bps
Operating Temperature
-40℃ ~ +85℃
Data
+
Storage
In-built 4GB memory
Correction
RTCM 2.x/3.x/CMR/CMR+
Output
NMEA-0183; Tersus Binary Format
Max. Update Rate
20Hz
Log & Command Compatible
NovAtel Protocol
Communication
+
Serial Ports
LVTTL x2 or RS232 x2
USB Ports
USB 2.0 device x1
CAN Ports
LVTTL or ISO/DIS 11898 x2 *
PPS Ports
LVTTL x1
Event Mark
LVTTL x2 *
Ethernet
10/100M Base-T x1 *
Remarks:
* This port’s function is related to firmware version.
Item List

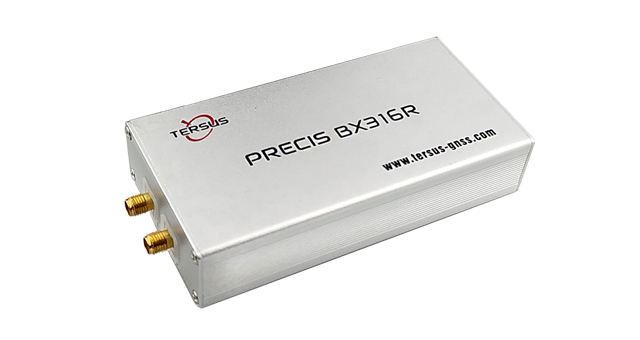

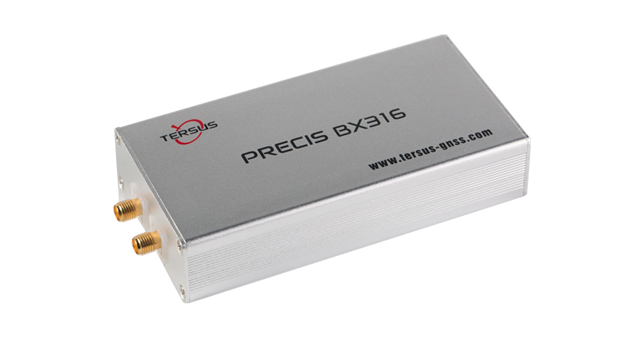

BX316R PPK Receiver with cables of power supply, event mark and serial port
AX3705 Helix Antenna
Hot Shoe adaptor
Tersus GeoPix Software
Tersus GNSS Base Station Receiver (Optional)
  • UAV PPK Solution Brochure
    Release Date: 2018-08-21 Version:1.0
  • User Manual_UAV PPK Solution
    Release Date: 2018-11-09 Version:1.1
  • BX316R Datasheet
    Release Date: 2018-07-25 Version:2.1
  • User Manual For BX Series GNSS Receiver
    Release Date: 2018-07-03 Version:1.0
  • GNSS OEM Boards & Receivers Brochure
    Release Date: 2018-04-18 Version:2.0
  • AX3705 Datasheet
    Release Date: 2018-07-25 Version:2.1
