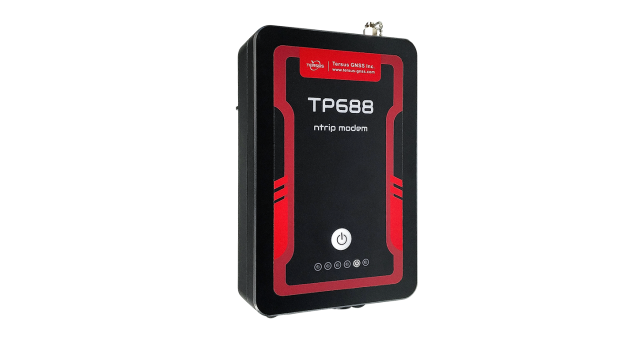

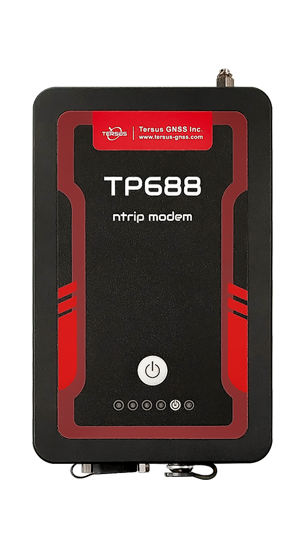

The Ntrip Modem TP688 is an industrial modem ideal for Ntrip corrections. It equips built-in industrial 4G wireless communication module, built-in 2600mAh battery, RS232 serial port, mounting handle, SIM card slot and high-speed data transmission module. It is a cost-effective industrial wireless modem.
The TP688 supports Ntrip protocol, and it can be used in Ntrip server mode and Ntrip client mode. The Ntrip function is configured by RS232 serial port and text message.
Features
Specifications
Documents
Videos
Industrial design and IP67-rated protection
Industrial component ARM and modules
Serial data transfer and wide voltage input
Low power consumption
Long-lasting operation with built-in 2600mAh battery
Supports global 2G/3G/4G network
Performance
+
Input Voltage
5V~36V DC
Operating Current
125mA @ +12V DC
Standby Current
90mA @ +12V DC
Power Consumption (typical)
1.5W
Battery
2600 mAh
Charging time
3.5 hours
Operating hours (typical)
18 hours
Physical
+
Dimension
160x102x37mm (w/o connectors)
Weight
650g
Operating Temperature
-40℃ ~ +85℃
Relative Humidity
95% @ +40℃
Communication
+
Network
Chinese version:
2G: GSM/GPRS/EDGE/CDMA2000 1x
3G: UMTS/WCDMA/HDSPA/HSPA+/TD-SCDMA /CDMA2000 EVDO
4G: TDD-LTE/FDD-LTE
3G: UMTS/WCDMA/HDSPA/HSPA+/TD-SCDMA /CDMA2000 EVDO
4G: TDD-LTE/FDD-LTE
Eurasian version (Europe, Middle East, Africa, South Korea, Thailand):
2G: GSM/GPRS/EDGE
3G: UMTS/WCDMA/HDSPA/HSPA+
4G: TDD-LTE/FDD-LTE
3G: UMTS/WCDMA/HDSPA/HSPA+
4G: TDD-LTE/FDD-LTE
North American version:
3G: UMTS/WCDMA/HDSPA/HSPA+
4G: FDD-LTE
4G: FDD-LTE
Australian version (New Zealand, Australia, South America):
2G: GSM
3G: WCDMA
4G: FDD-LTE/TDD-LTE
3G: WCDMA
4G: FDD-LTE/TDD-LTE
Operating Frequency Band
Chinese version:
TDD-LTE B38/B39/B40/B41
FDD-LTE B1/B3/B8
UMTS/HSDPA/HSPA+ B1/B8
TD-SCDMA B34/B39
CDMA2000 1x/EVDO BC0
GSM/GPRS/EDGE 900/1800 MHz
FDD-LTE B1/B3/B8
UMTS/HSDPA/HSPA+ B1/B8
TD-SCDMA B34/B39
CDMA2000 1x/EVDO BC0
GSM/GPRS/EDGE 900/1800 MHz
Eurasian version (Europe, Middle East, Africa, South Korea, Thailand):
TDD-LTE B38/B40
FDD-LTE B1/B3/B7/B8/B20
UMTS/HSDPA/HSPA+ B1/B8
GSM/GPRS/EDGE 900/1800 MHz
FDD-LTE B1/B3/B7/B8/B20
UMTS/HSDPA/HSPA+ B1/B8
GSM/GPRS/EDGE 900/1800 MHz
North American version:
FDD-LTE B2/B4/B5/B17
UMTS/HSDPA/HSPA+ B2/B5
UMTS/HSDPA/HSPA+ B2/B5
Australian version (New Zealand, Australia, South America):
FDD-LTE B1/B2/B3/B4/B5/B7/B8/B28
TDD-LTE B40
WCDMA B1/B2/B5/B8
GSM 850/900/1800/1900
TDD-LTE B40
WCDMA B1/B2/B5/B8
GSM 850/900/1800/1900
Interfaces
+
Serial Port
RS232 x1
Antenna Connector
SMA Female x1
Power Connector
2pin LEMO
-
Datasheet_TP688
Release Date: 2020-11-18 Version:1.3
-
User Manual_Ntrip Modem TP688
Release Date: 2020-07-23 Version:1.4
