Tersus GeoBee
The Tersus GeoBee is a dedicated and cost-effective solution to transmit or receive Ntrip corrections.

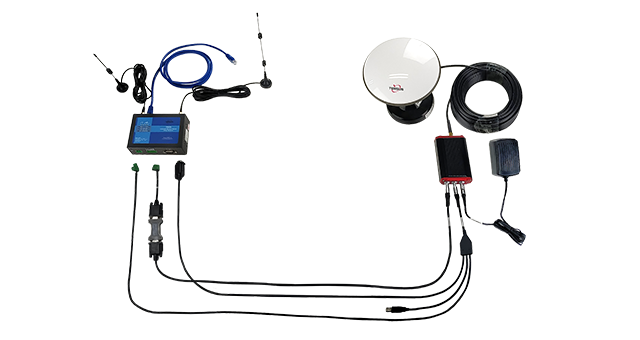

The Tersus GeoBee is a dedicated and cost-effective solution to transmit or receive Ntrip corrections. With Tersus Ntrip Caster Service, Ntrip Modem and David Receiver, the GeoBee opens the possibility for users to transmit Real Time Kinematic (RTK) corrections via Internet (Ethernet or 2G/3G/4G) in a simple, user-friendly way, just using a SIM card or Ethernet cable without any need of a static IP. GeoBee can also work as GNSS Rover to receive RTK corrections from Tersus Ntrip Caster or any CORS service.
David GNSS Receiver - Rover Mobile (2) 640x340px.jpg
Ntrip server mode: use David GNSS receiver to create a base station. This temporary base or CORS are for surveying, agriculture, UAV, machine control, and etc. It is also ideal for deformation monitoring. Tersus GNSS Inc. provides Ntrip Caster to transfer data.
Ntrip client mode: connect David or other Tersus GNSS receivers to Tersus Ntrip Caster or any Ntrip/CORS service. David is mainly used for surveying, and also used as a GNSS sensor in various applications, such as mobile mapping, UAV, machine control, agriculture, and etc.


Features
Specifications
In the Box
Documents
Videos
Supports multiple constellations & frequencies
- GPS L1/L2
- GLONASS L1/L2
- BeiDou B1/B2
Support 384 channels
Supports RTCM2.3/3.x, CMR, CMR+ corrections
Supports 4GB internal storage
Rapid RTK integer ambiguity resolution
Supports stable, high-precision measurement output
Supports Ethernet is default while 2G/3G/4G is hot standby
Performance
+
Input Voltage
12V~48V DC
Operating Current
350mA @ +12V DC
Standby Current
250mA @ +12V DC
Power Consumption (typical)
4.2W
Communication
+
Network
      China version:
2G: GSM/GPRS/EDGE/CDMA2000 1x
3G: UMTS/WCDMA/HDSPA/HSPA+/TD-SCDMA /CDMA2000 EVDO
4G: TDD-LTE/FDD-LTE
      Eurasia version (Europe, Middle East, Africa, South Korea, Thailand):
2G: GSM/GPRS/EDGE
3G: UMTS/WCDMA/HDSPA/HSPA+
4G: TDD-LTE/FDD-LTE
      North America version:
3G: UMTS/WCDMA/HDSPA/HSPA+
4G: FDD-LTE
      Australia version (New Zealand, Australia, South America):
2G: GSM
3G: WCDMA
4G: FDD-LTE/TDD-LTE
Operating Frequency
      China version:
TDD-LTE B38/B39/B40/B41
FDD-LTE B1/B3/B8
UMTS/HSDPA/HSPA+ B1/B8
TD-SCDMA B34/B39
CDMA2000 1x/EVDO BC0
GSM/GPRS/EDGE 900/1800 MHz
      Eurasia version (Europe, Middle East, Africa, South Korea, Thailand):
TDD-LTE B38/B40
FDD-LTE B1/B3/B7/B8/B20
UMTS/HSDPA/HSPA+ B1/B8
GSM/GPRS/EDGE 900/1800 MHz
      North America version:
FDD-LTE B2/B4/B5/B17
UMTS/HSDPA/HSPA+ B2/B5
      Australia version (New Zealand, Australia, South America):
FDD-LTE B1/B2/B3/B4/B5/B7/B8/B28
TDD-LTE B40
WCDMA B1/B2/B5/B8
GSM 850/900/1800/1900
Physical
+
Dimension
118x91x34mm (w/o connectors)
Weight
335g
Operating Temperature
-30℃ ~ +80℃
Relative Humidity
95% @ +40℃
Interfaces
+
Serial Port
RS232 x1, RS485 x1
Ethernet
RJ45 x2 (LAN, LAN/WAN)
Antenna Connector
SMA Female x1
1 x AX3702 GNSS antenna
1 x TNC-J to SMA cable 25m
1 x David GNSS Receiver
1 x Bottom Plate for Fixing David
1 x COMM1-Bluetooth module
1x Travel Adapter GN901E/GN901G/GN901A
1 x DC-2pin AC Power Adapter with 1.2m cable
1 x COMM1-7pin to TR600-DC-2pin & DB9 female cable
1 x COMM2-7 pin to USB & DB9 male cable
1x RS232 to RS485 converter
1x DB9 female to TR600-RS485-5pin cable
1 x USB Type A Female to USB (Micro+Type C) OTG cable
1 x DB9 Female to USB Type A Male converter cable

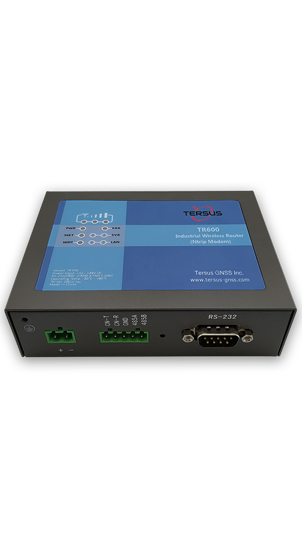

1 x Ntrip Modem TR600
1 x Bracket & Slide for TR600
1 x 4G antenna for TR600
1 x Wi-Fi antenna for TR600
2 x Ethernet cable 1.5m
1 x carrying case
1 x warranty card
1 x Quick Start
  • GeoBee_Datasheet
    Release Date: 2018-12-14 Version:1.2
