TC20 Controller

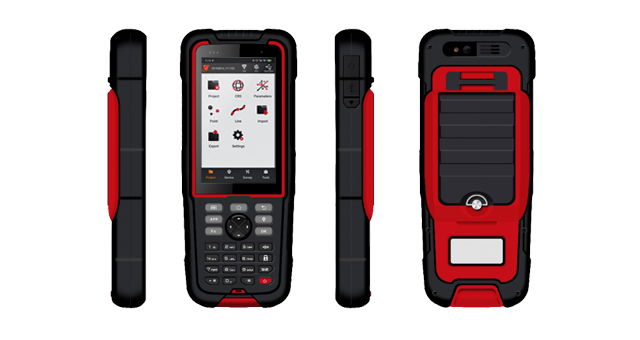

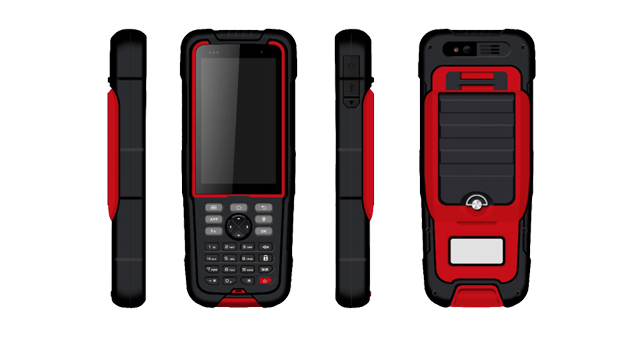

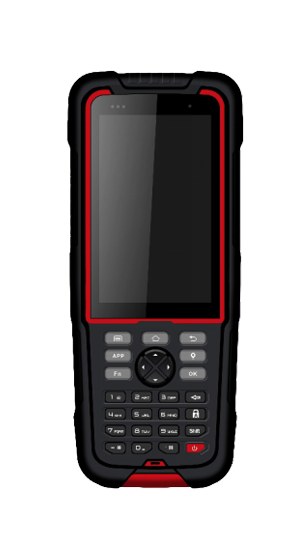

The Tersus TC20 Controller is a rugged smart phone with design of 4.3'' touch screen and an alphanumerical keypad.
TC20 640x340.png
The Tersus TC20 Controller is a rugged smart phone with design of 4.3'' touch screen and an alphanumerical keypad. Equipped with powerful processor, it is perfect to adapt with Tersus Survey software. With professional IP67 rating, it is robust and reliable for harsh operating conditions.
Features
Specifications
Documents
Videos
Rugged smart phone 4.3’’ display
4G GSM unlocked Android 6.0
Quad-Core 1.3GHz CPU
2GB RAM + 16GB ROM
8 MP Auto Focus camera
IP67 certified grade, water/shock/dust proof
Two color options: red and yellow
System
+
Operating System
Android 6.0
CPU
MTK MT6735 Quad-Core 1.3GHz
Memory
2GB RAM + 16GB ROM
External Flash
T-Flash , up to 64GB
Keypad Backlight
White
LCD
4.3"
Touch Screen
Capacitive Touch Screen
Camera
8M pixel, Auto Focus
Flash Light
High light Flash LED
Language
47 languages including Chinese, English, Filipino, French, Italian, Japanese, Korean, Malay Portuguese, Romanian, Russian, Spanish, Turkish, etc.
GNSS
+
Signals supported
A-GPS
Electrical
+
Power
5V DC, 1.0A
Battery
6500 mAh
Battery Life
10 hrs call, 720 hrs standby
Charging Time
4.5 hrs (5V 2A input)
8 hrs (5V 1A input)
Communication
+
Wi-Fi
IEEE 802.11a/b/g/n/ac
Cellular Mode
Dual SIM Dual Standby
SIM1 & SIM2
FDD-LTE 800 / 1800 / 2100 / 2600MHz
TD-LTE 1900 / 2300 / 2500 / 2600MHz
WCDMA 850 / 900 / 1900 / 2100MHz
GSM 850 / 900 / 1800 / 1900MHz
Bluetooth
V4.1
Micro USB
Micro USB for charging and data (OTG)
Audio Jack
3.5mm Audio Jack for Audio
NFC
Standard
Sensors
G-Sensor, Compass, Barometer,
Light-Sensor, Gyro
Physical
+
Dustproof & Waterproof
IP-67
Shock
0.8m drop onto concrete
Dimension
210mm x 87mm x 31mm
Weight
495g (include battery)
Operating Temperature
-20 ℃ ~ +55 ℃
Storage Temperature
-30 ℃ ~ +65 ℃
  • TC20 Controller Datasheet
    Release Date: 2018-11-11 Version:1.0
