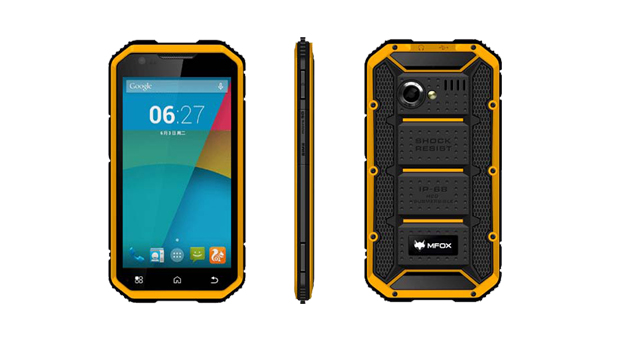

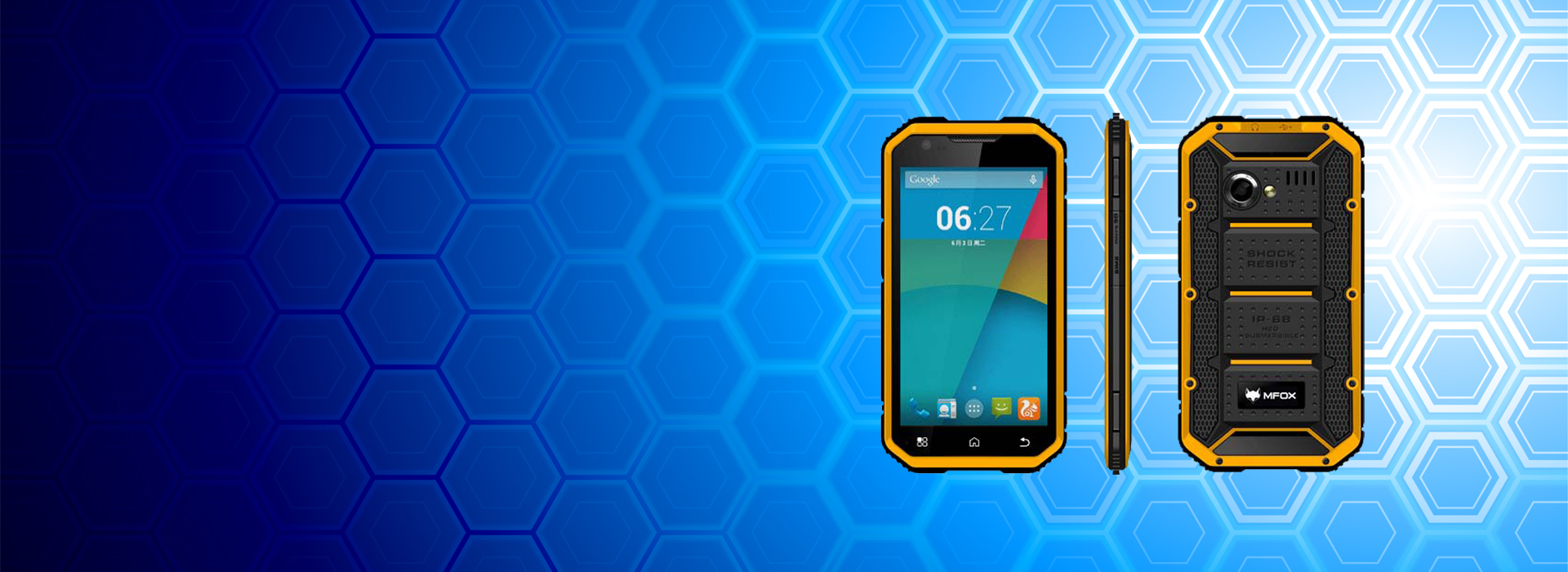

MFOX A11 Mobile Terminal
The MFOX A11 mobile terminal is a rugged smart phone with design of diamond shape and 4.97'' touch screen. Equipped with powerful processor, it is perfect to adapt with Tersus-Survey software. With professional IP68 rating, it is robust and reliable.
Features
Specifications
Documents
Videos
Rugged smart phone 4.97’’ display
4G GSM unlocked Android 5.1
Octa-Core 1.7GHz CPU
3GB RAM + 32GB ROM
13.2 MP front camera, 5 MP rear camera
IP68 certified military grade, water/shock/dust proof
System
+
Operating System
Android 5.1
CPU
MTK MT6752 Octa-Core 1.7GHz
Memory
3GB RAM + 32GB ROM
External Flash
T-Flash , up to 32GB
Keypad Backlight
White
LCD
4.97" 1920x1080 pixels
Touch Screen
Capacitive Touch Screen
Camera
Front 13.2M pixel, Rear 5.0M pixel
Flash Light
High light Flash LED
GNSS
+
Signals supported
GPS, GLONASS, BeiDou
Accuracy
2 –5 m
Time to First Fix
30s
Electrical
+
Power
5V DC, 1.0A
Battery
2800 mAh
Battery Life
6 hrs call, 120 hrs standby
Charging Time
3.35 hrs
Communication
+
Wi-Fi
IEEE 802.11a/b/g/n/ac
Cellular Mode
Dual SIM Dual Standby
SIM1 & SIM2
FDD-LTE 1800 / 2100 / 2600MHz
TD-LTE 1900+ / 2300 / 2500 / 2600MHz
WCDMA 850 / 900 / 1900 / 2100MHz
GSM 850 / 900 / 1800 / 1900MHz
Bluetooth
V4.0
Micro USB
Micro USB for charging and data (OTG)
Audio Jack
3.5mm Audio Jack for Audio
NFC
Standard
Sensors
G-Sensor, Compass, Barometer, Proximity-Sensor, Light-Sensor, Gyro
Physical
+
Dustproof & Waterproof
IP-68 / MIL-STD-810G
Shock
1.2m drop onto concrete
Dimension
152.9mmx80.5mmx12.95mm
Weight
229g
Operating Temperature
-20 ℃~ +55 ℃
Storage Temperature
-30 ℃~ +65 ℃
  • A11 Datasheet
    Release Date: 2018-08-17 Version:1.0
