BX316D GNSS UAV Kit
With 1W/915MHz Radio (Eagle)
BX316D UAV GNSS Kit_640x340px.png

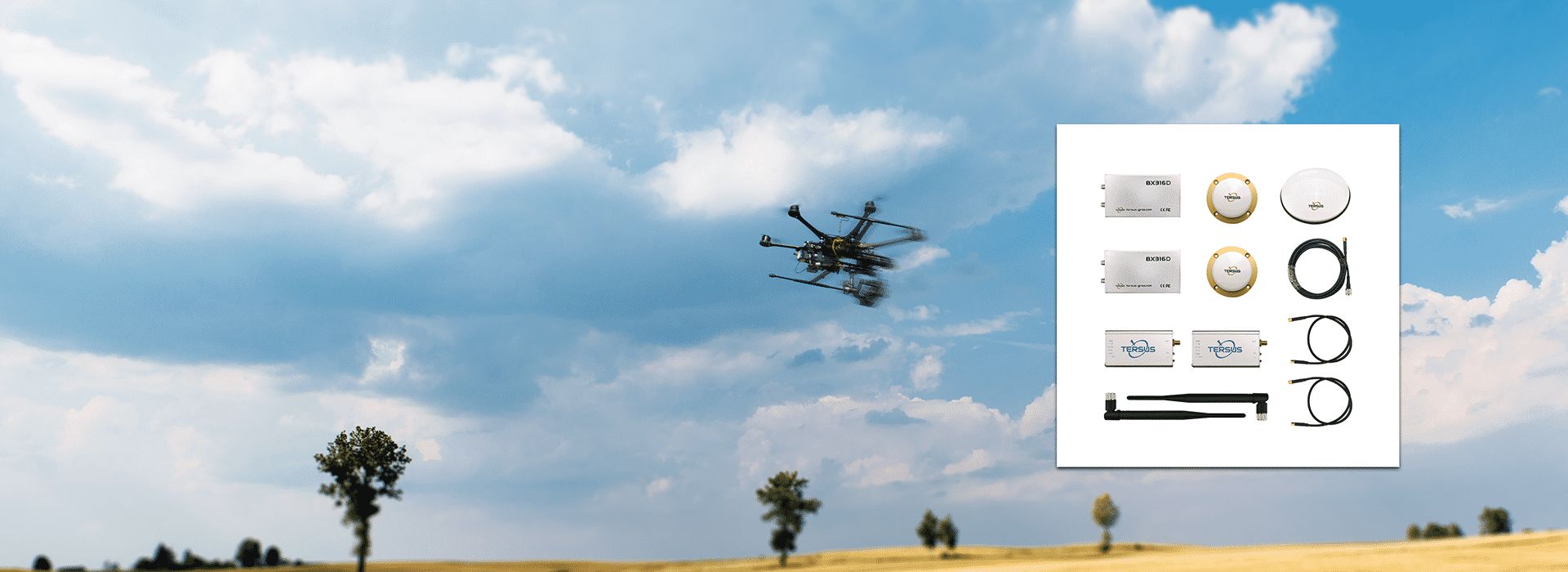

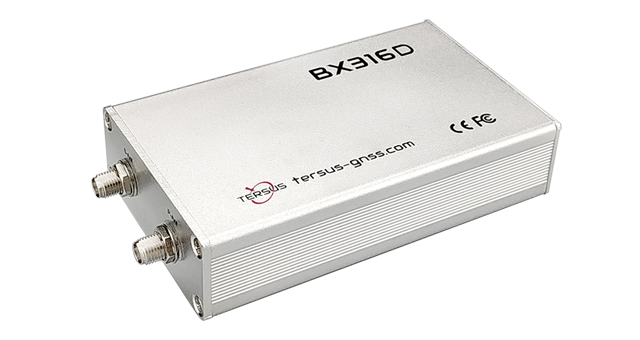

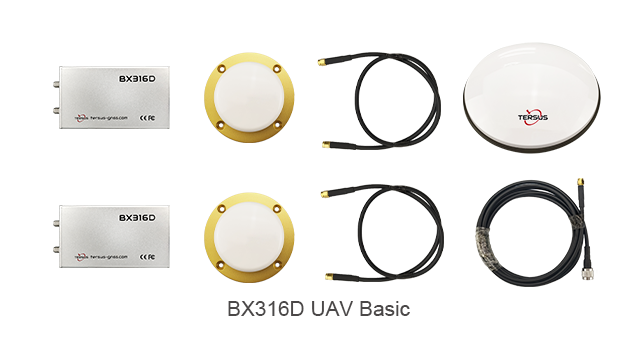

BX316D UAV Kit consists of BX316D UAV Basic and Eagle Radio Option. BX316D GNSS receiver is a cost-efficient dual frequency GNSS RTK receiver providing accurate positioning, raw measurement output, and heading information. It offers real-time cm-level positioning as well as flexible interfaces.
Eagle Radio Option 640x340px.png

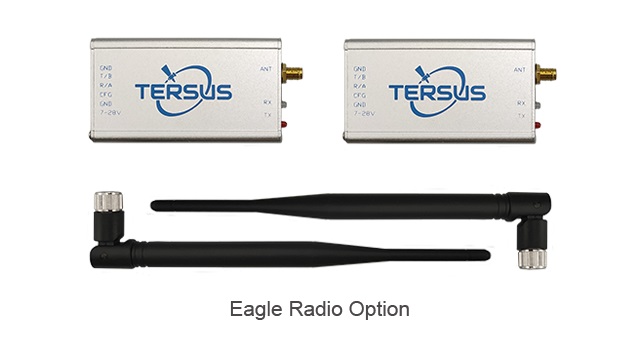

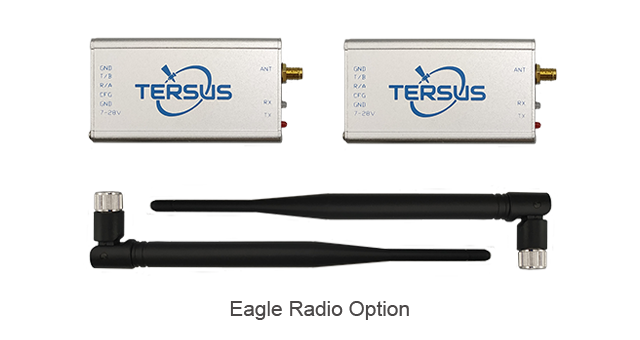

Eagle Radio option is used for transmitting and receiving correction data at 915MHz. It has high transmitting power to provide wide communication range. With AX3703 mini GNSS antenna for Rover, the overall light weight is ideal for UAV applications.
*For detailed list of items, please check Item List - BX316D UAV Kit
Features
Specifications
In the Box
Documents
Videos
Supports RTK positioning mode or RTK positioning + heading mode
The two modes are software configurable
Supports 384 channels
Command compatible with NovAtel protocol
Supports 20Hz RTK solution updates and raw data outputs
Supports in-built 4GB memory, which makes data collection easy
Supports PPS output and event mark input
Signal Tracking
+
Primary Antenna
GPS L1/L2
GLONASS L1/L2
BeiDou B1/B2
Secondary Antenna
GPS L1+GLONASS L1
or
GPS L1+BeiDou B1
GNSS Channels
384
Positioning
+
Single Point Positioning Accuracy (RMS)
     - Horizontal
1.5m
     - Vertical
3.0m
RTK Positioning Accuracy (RMS)
     - Horizontal
10mm + 1ppm
     - Vertical
15mm + 1ppm
Observation
+
C/A Code (zenith direction)
10cm
P Code (zenith direction)
10cm
Carrier Phase (zenith direction)
1mm
Heading 1m Baseline (RMS)
0.15°
Physical & Electrical
+
Size
100 x 57 x 24mm
Weight
150g
Input Voltage
5V~28V DC
Power Consumption (typical)
2.8W
Active Antenna Input Impedance
50Ω
Antenna Connector
SMA female x2
COM Baud Rate
Up to 921600bps
Max. Update Rate
20Hz
Operating Temperature
-40℃ ~ +85℃
Log & Command Compatible
NovAtel Protocol
Data
+
Storage
In-built 4GB memory
Correction
RTCM 2.x/3.x/CMR/CMR+
Output
NMEA-0183; Tersus Binary Format
Max. Update Rate
20Hz
Log & Command Compatible
NovAtel Protocol
Communication
+
Serial Ports
LVTTL x2
USB Ports
USB 2.0 device x1
CAN Ports
ISO/DIS 11898 x1*
PPS Ports
LVTTL x1
Event Mark
LVTTL x1
Remarks:
* This port’s function is related to firmware version.
BX316D GNSS UAV Kit includes
2 x BX316D RTK receiver
2 x 2pin power cable
2 x 20pin external cable
2 x UART to USB converter
2 x USB Type A to USB Mini cable
1 x AX3702 GNSS antenna
1 x TNC-J to SMA cable 3m (GNSS antenna cable)
2 x AX3703 Mini GNSS Antenna
2 x SMA cable for AX3703
2 x 915MHz radio (Eagle) + 915MHz antenna
2 x power & data cable for 915MHz radio (Eagle)
1 x carrying case
  • BX316D GNSS UAV Kit Datasheet
    Release Date: 2019-02-26 Version:1.0
  • Item List - BX316D UAV kit
    Release Date: 2019-02-27 Version:1.0
  • User Manual For BX Series GNSS Receiver
    Release Date: 2019-03-14 Version:2.0
  • Log & Command Reference for Tersus BX GNSS OEM Boards
    Release Date: 2019-02-18 Version:2.4
  • GNSS OEM Boards & Receivers Brochure
    Release Date: 2019-03-20 Version:2.1

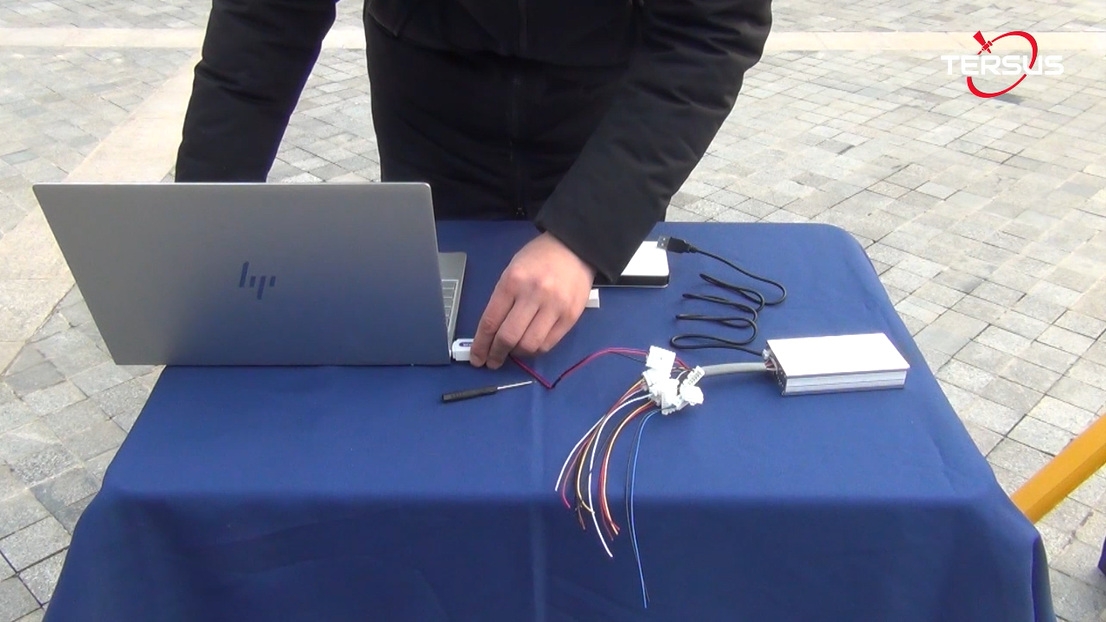

BX316 Kit HRS Quick Start Video - Base+Rover

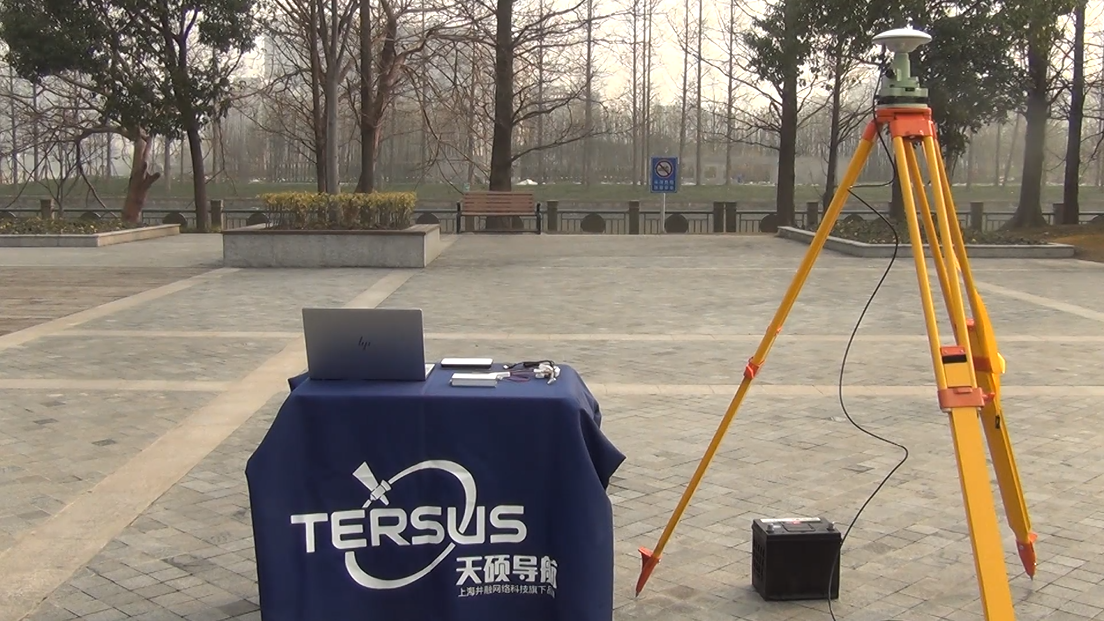

BX316 Quick Start Video - Collect Static Data

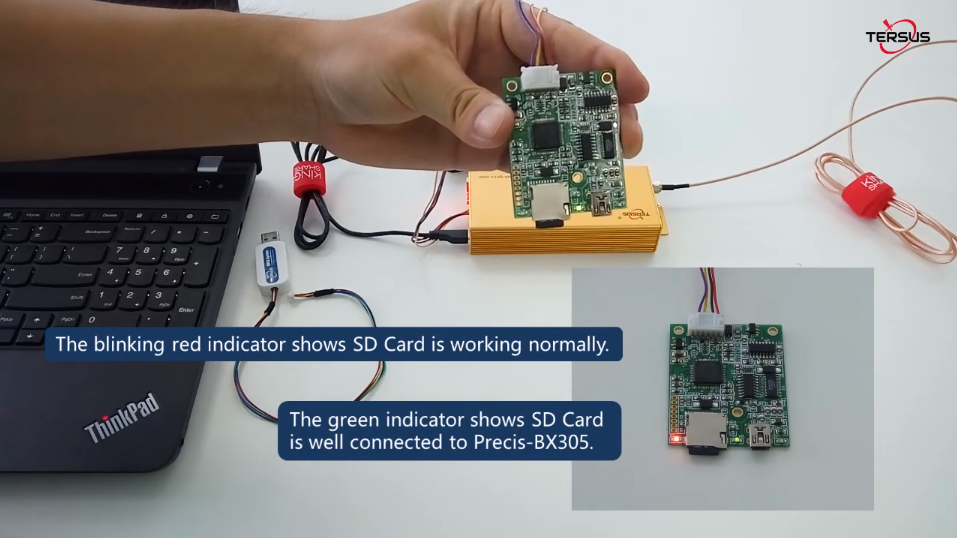

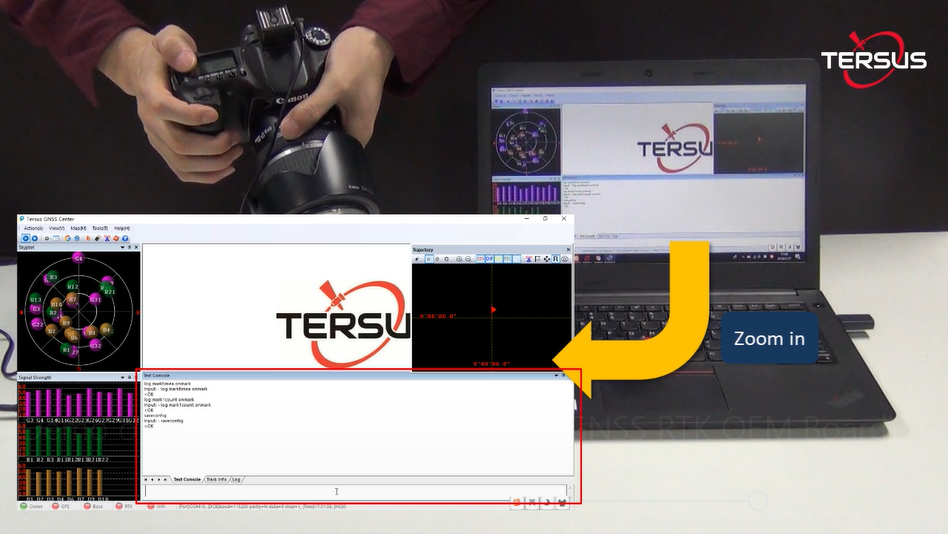

Demo of Logging Event Mark (BX316 GNSS RTK OEM Board)
Log data with external data logger
