BX316D GNSS Kit
With 2w/460Mhz Radio (RS460)
BX316D GNSS Kit_640x340px.png

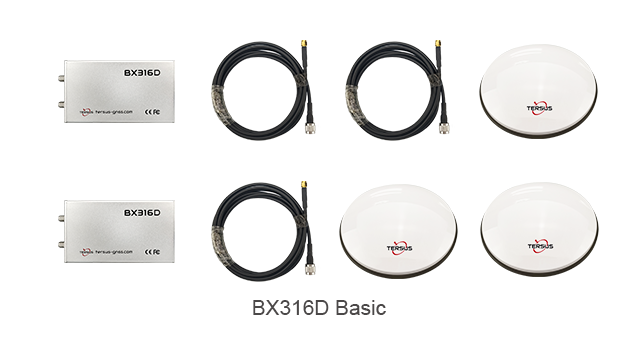

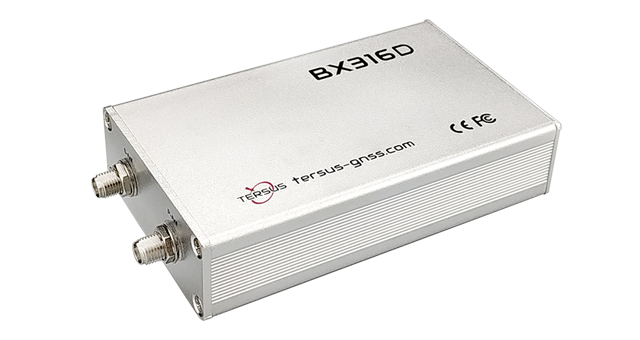

BX316D Kit consists of BX316D Basic and 2W Radio Option. BX316D GNSS receiver is a cost efficient dual frequency GNSS RTK receiver providing accurate positioning, raw measurement output, and heading information. It offers real-time cm-level positioning as well as flexible interfaces.
2W Radio Option 640x340px.png

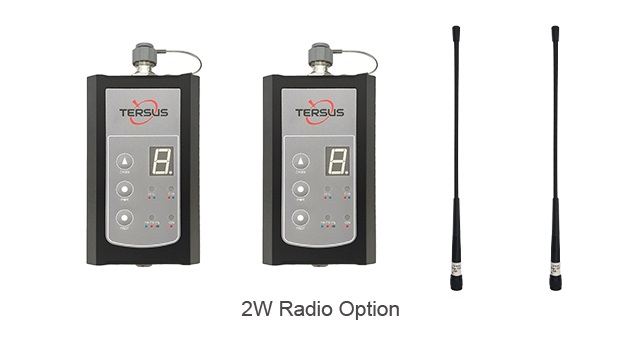

2W Radio option provides reliable data communications between 457 MHz and 467 MHz for mission-critical applications where a combination of stability, superior performance and long distance are required. Equipped with dual antenna design for precise heading, the BX316D Kit is ideal for precision navigation, precision agriculture, and surveying.
*For detailed list of items, please check Item List-BX316D Kit
Features
Specifications
In the Box
Documents
Videos
Supports RTK positioning mode or RTK positioning + heading mode
The two modes are software configurable
Supports 384 channels
Command compatible with NovAtel protocol
Supports 20Hz RTK solution updates and raw data outputs
Supports in-built 4GB memory, which makes data collection easy
Supports PPS output and event mark input
Signal Tracking
+
Primary Antenna
GPS L1/L2
GLONASS L1/L2
BeiDou B1/B2
Secondary Antenna
GPS L1+GLONASS L1
or
GPS L1+BeiDou B1
GNSS Channels
384
Positioning
+
Single Point Positioning Accuracy (RMS)
     - Horizontal
1.5m
     - Vertical
3.0m
RTK Positioning Accuracy (RMS)
     - Horizontal
10mm + 1ppm
     - Vertical
15mm + 1ppm
Observation
+
C/A Code (zenith direction)
10cm
P Code (zenith direction)
10cm
Carrier Phase (zenith direction)
1mm
Heading 1m Baseline (RMS)
0.15°
Performance
+
Time to First Fix
     - Cold Start
<50s
     - Warm Start
<30s
Timing Accuracy (RMS)
20ns
Velocity Accuracy (RMS)
0.03m/s
Initialization (typical)
<10s
Initialization Reliability
>99.9%
Physical & Electrical
+
Size
100 x 57 x 24mm
Weight
150g
Input Voltage
5V~28V DC
Power Consumption (typical)
2.8W
Active Antenna Input Impedance
50Ω
Antenna Connector
SMA female x2
COM Baud Rate
Up to 921600bps
Operating Temperature
-40℃ ~ +85℃
Data
+
Storage
In-built 4GB memory
Correction
RTCM 2.x/3.x/CMR/CMR+
Output
NMEA-0183; Tersus Binary Format
Max. Update Rate
20Hz
Log & Command Compatible
NovAtel Protocol
Communication
+
Serial Ports
LVTTL x2
USB Ports
USB 2.0 device x1
CAN Ports
ISO/DIS 11898 x1 *
PPS Ports
LVTTL x1
Event Mark
LVTTL x1
Remarks:
* This port’s function is related to firmware version.
BX316D GNSS Kit includes
2 x BX316D RTK receiver
2 x 2pin power cable
2 x 20pin external cable
2 x UART to USB converter
2 x USB Type A to USB Mini cable
3 x AX3702 GNSS antenna
3 x TNC-J to SMA cable 3m (GNSS antenna cable)
2 x 2W/460MHz radio
2 x 2W/460MHz radio antenna
1 x USB to 2pin BX316D power + 2W-Radio-power and COM cable
1 x Bullet-DC to Alligator Clips
1 x carrying case
1 x Bullet-DC to 2pin BX316D power +2W-Radio-power and COM cable
  • BX316D GNSS Kit Datasheet
    Release Date: 2019-02-26 Version:1.0
  • Item List - BX316D GNSS kit
    Release Date: 2019-02-27 Version:1.0
  • User Manual For BX Series GNSS Receiver
    Release Date: 2018-07-03 Version:1.0
  • GNSS OEM Boards & Receivers Brochure
    Release Date: 2019-03-20 Version:2.1
BX316 Kit HRS Quick Start Video - Base+Rover
BX316 Quick Start Video - Collect Static Data
Demo of Logging Event Mark (BX316 GNSS RTK OEM Board)
Log data with external data logger
