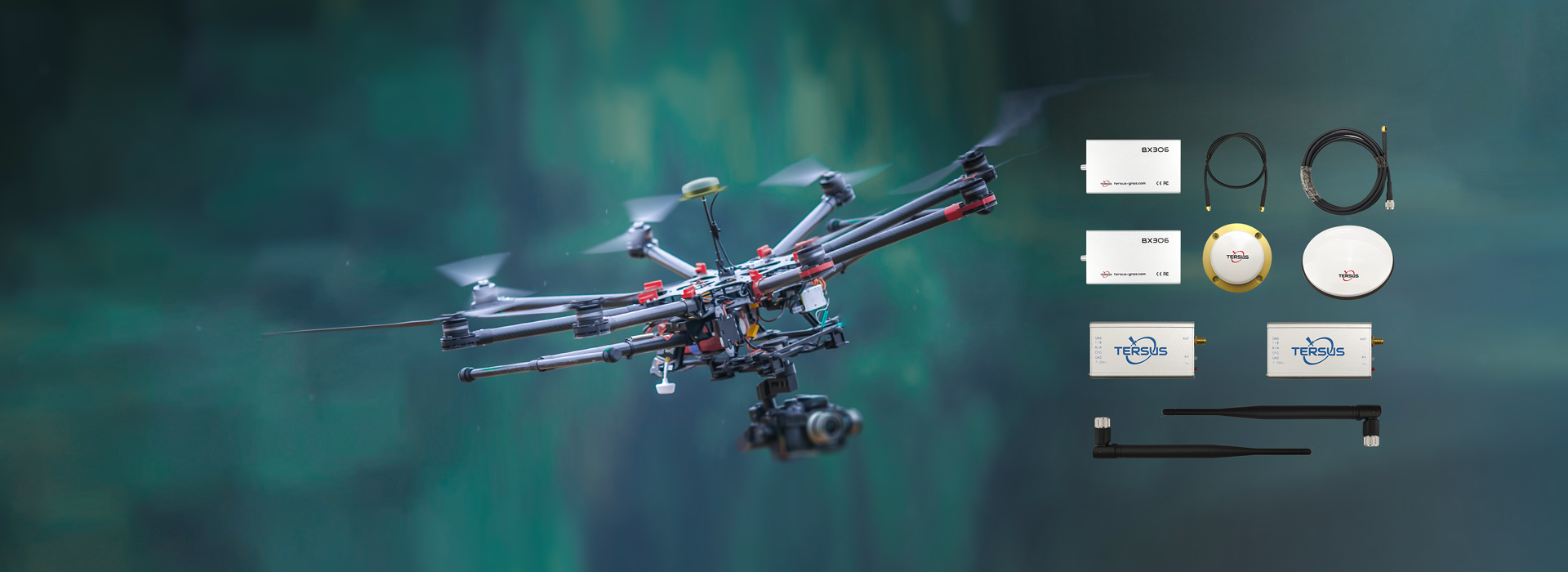

BX306 GNSS Kit
With 433/915 MHz Radio
GNSS Easy Kits - BX306 KIT (1) 640x340px.png

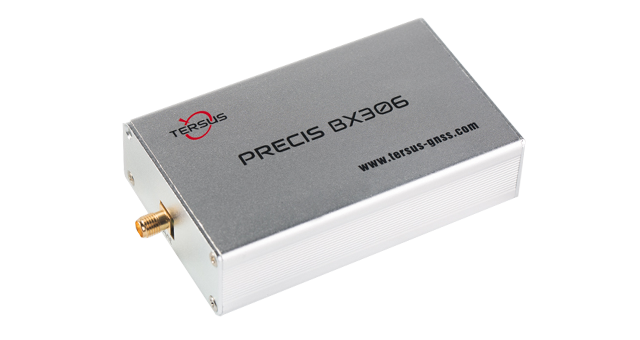

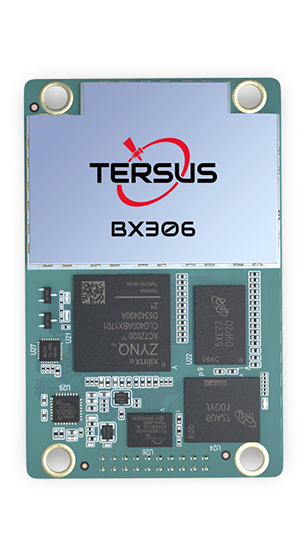

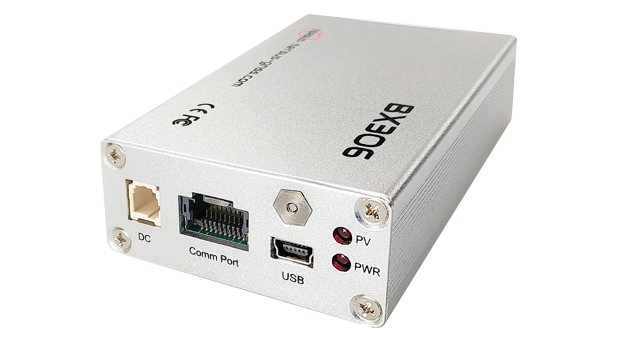

The BX306 is a cost-efficient GNSS RTK board for cm-level positioning and providing accurate raw measurement output, which can be integrated with autopilots and inertial navigation units. The BX306 board supports three constellations (GPS L1/L2, GLONASS G1/G2, and BeiDou B1/B2) to improve the continuity and reliability of the RTK solution even in harsh environments. It features compatibility with other GNSS boards in the market via flexible interfaces, smart hardware design, and commonly used log/command formats.
GNSS Easy Kits - BX306 KIT (4) 640x340px.png

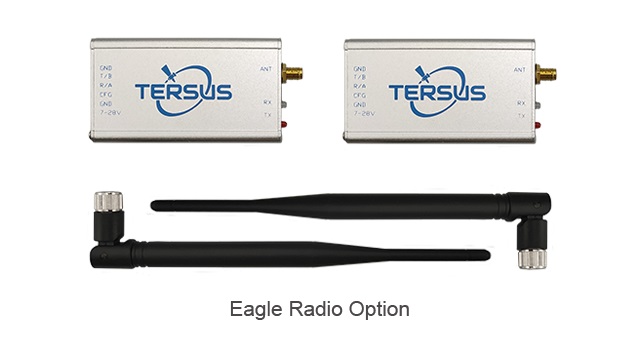

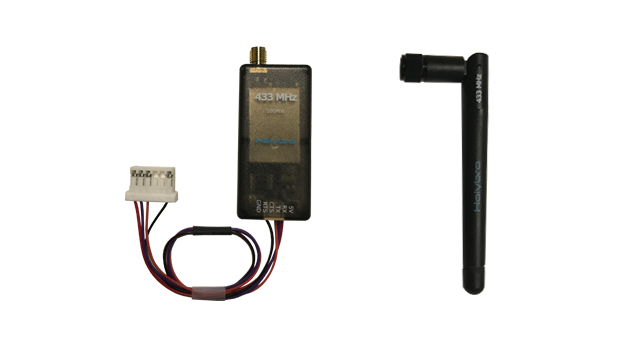

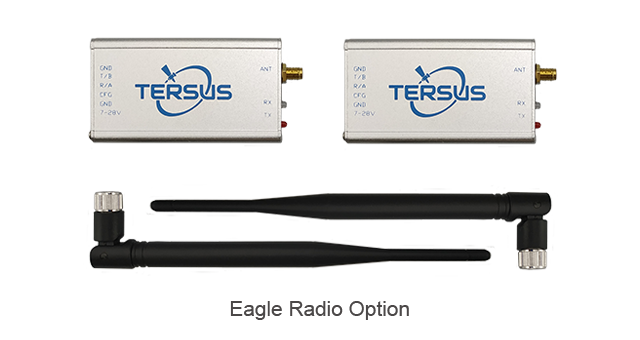

About the 433/915 MHz RadiosThe radio is available in 915 MHz (US) and 433 MHz (Europe). The two radio transmitters/receivers in a RTK system need to be able to pass RTCM data from the base station to the rover receiver. The bundle includes a basic low-power radio link that is designed for short baseline applications. It has a transmit power of up to 100mW, which can support communications over approximately one kilometer range.
Features
Specifications
In the Box
Documents
Videos
Supports GPS L1/L2, GLONASS G1/G2, and BeiDou B1/B2
Up to 20Hz RTK solution and raw data output
Supports IMU raw data output
Pin-to-pin compatible with NovAtel OEM615
Log/command compatible with NovAtel protocol
Supports event mark and PPS
Signal Tracking
+
Single Antenna
GPS L1/L2
GLONASS G1/G2
BeiDou B1/B2
Positioning
+
Standard (RMS)
     - Horizontal
1.5m
     - Vertical
3.0m
RTK (RMS)
     - Horizontal
10mm + 1ppm
     - Vertical
15mm + 1ppm
Observation
+
C/A Code (zenith direction)
10cm
P Code (zenith direction)
10cm
Carrier Phase (zenith direction)
1mm
Performance
+
Time to First Fix
     - Cold Start
<50s
     - Warm Start
<30s
Timing Accuracy (RMS)
20ns
Velocity Accuracy (RMS)
0.03m/s
Initialization (typical)
<10s
Initialization Reliability
>99.9%
Physical & Electrical
+
Size
46 x 71 x 12mm
Weight
23g
Input Voltage
3.3V DC
Power Consumption (typical)
2.8W
Active Antenna Input Impedance
50Ω
Antenna Connector
MCX female x1
COM Baud Rate
Up to 921600bps
Pin-to-Pin Compatible
NovAtel 615
Operating Temperature
-40℃ ~ +85℃
Data
+
Correction
RTCM 2.x/3.x/CMR/CMR+
Output
NMEA-0183; Tersus Binary Format
Max. Update Rate
20Hz
Log & Command Compatible
NovAtel Protocol
Communication
+
Serial Ports
LVTTL x2
USB Ports
USB device x1
CAN Ports
ISO/DIS 11898 x2 *
PPS Ports
LVTTL x1
Event Mark
LVTTL x2 *
Remarks:
* This port’s function is related to firmware version.

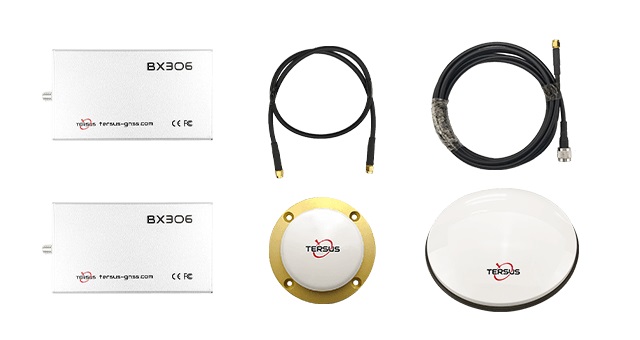

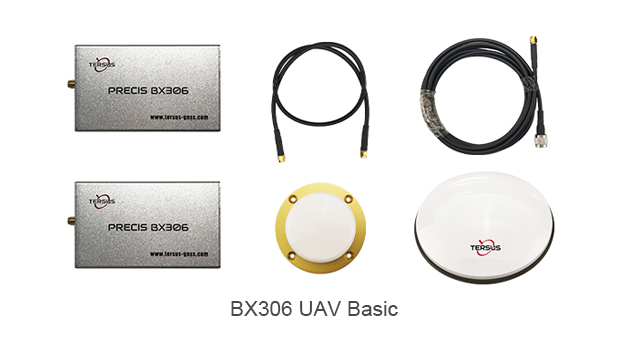

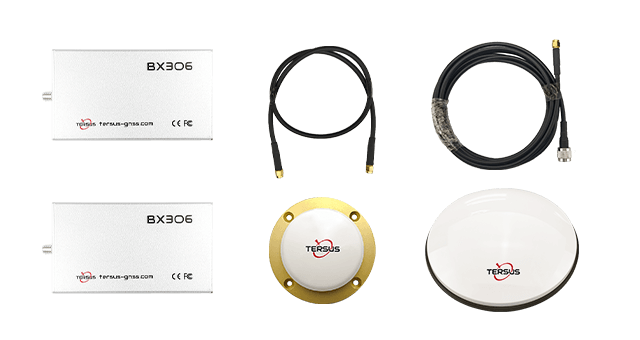

BX306 GNSS Kit includes
2 x BX306 RTK receivers
2 x GNSS antennas with cables
2 x 433 [or 915] MHz radio modules with cables
2 x LVTTL serial ports
2 x 20-pin external cables
2 x power cables
  • BX306 GNSS Kit Datasheet
    Release Date: 2018-04-11 Version:2.0
  • BX306 User Manual
    Release Date: 2018-04-20 Version:1.0
  • Log & Command Reference for Tersus BX GNSS OEM Boards
    Release Date: 2018-04-20 Version:1.0
  • GNSS OEM Boards & Receivers Brochure
    Release Date: 2018-04-18 Version:2.0

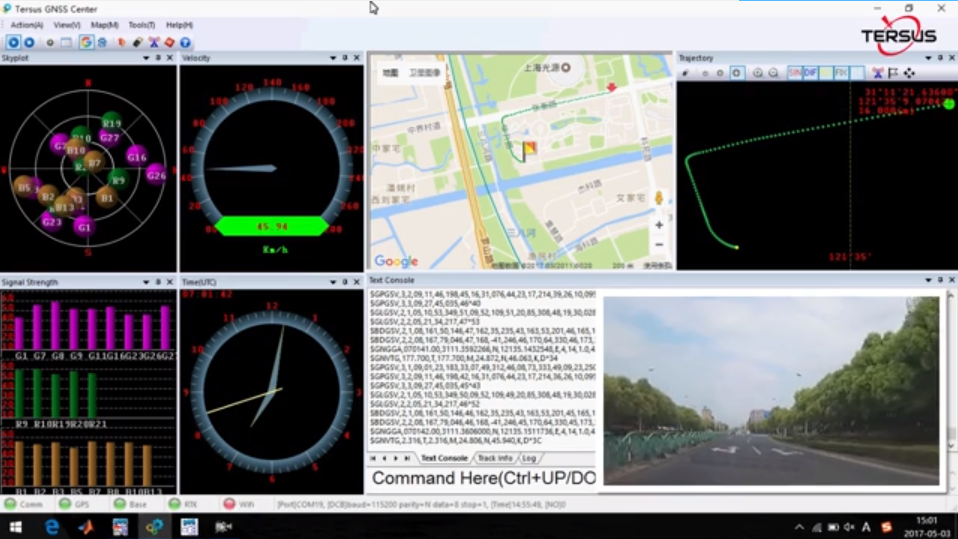

GNSS RTK Receiver Road Test Demo (BX306)
