AG960
Hydraulic Drive Autosteer System
Guidance & Steering - AG960 (1) 640x340px.png
The AG960 hydraulic drive Autosteer system is an autopilot solution for agricultural machinery. It includes a Global Navigation Satellite System (GNSS) receiver integrated with a precision agriculture automation system. By integrating the high-precision navigation receiver and automation software, the system enables agricultural machines to operate in accordance with pre-planned paths and tasks.
Guidance & Steering - AG960 (2) 640x340px.png

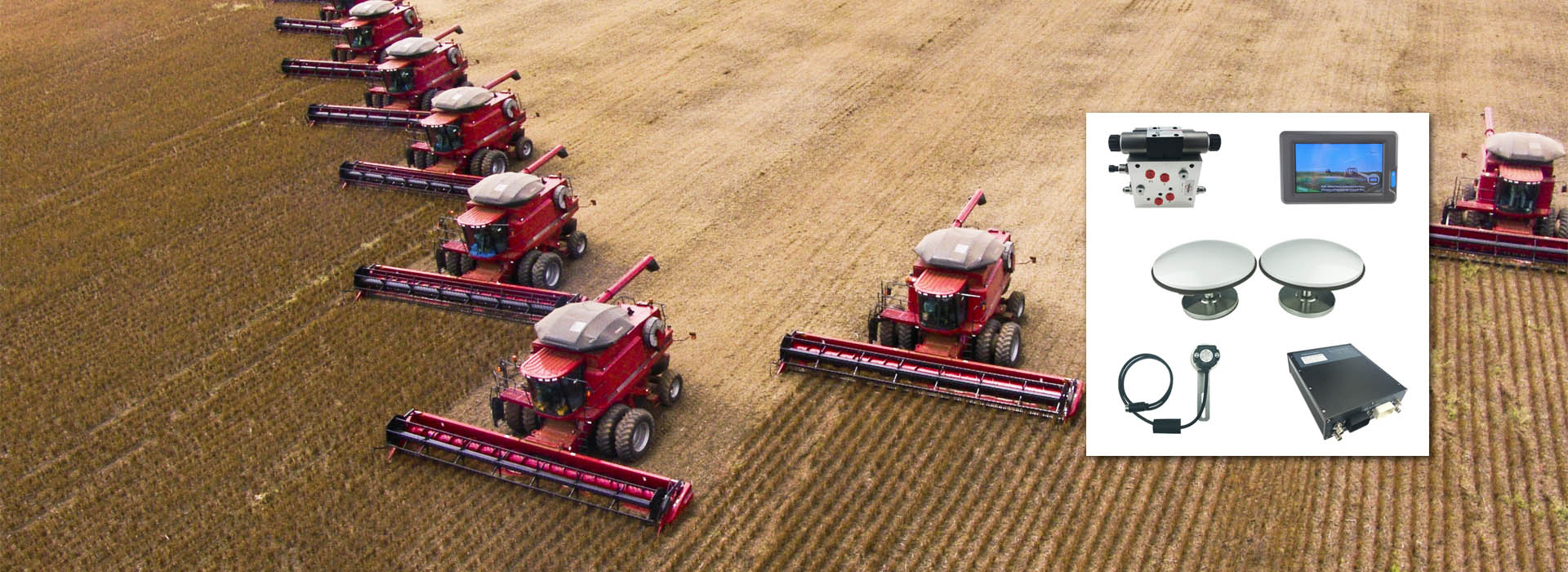

The AG960 hydraulic drive Autosteer system includes a GNSS antenna, a vehicle display panel, a high-precision positioning receiver, hydraulic valve, and angle sensors. An automated vehicle controller employs precise GNSS guidance information to hydraulically steer agricultural machinery. This enables agricultural machines to automatically drive along set routes and execute planned tasks, which can be monitored on graphical displays.
Features
Specifications
In the Box
Documents
Videos
Improved operation and agricultural precision
Improved agricultural productivity and profitability
Easy to use and applicable for each working cycle of agriculture, such as soil tillage, plow, ditch, ridge, seed, spray, harvest, etc.
Performance
+
Steering Mechanism/Actuators
Hydraulic valve
Frequencies
GPS L1/L2, GLONASS L1/L2,
BeiDou B1/B2, Galileo E1/E5b
RTK Positioning Accuracy:
   - Horizontal
≤1cm
   - Vertical
≤2cm
Observation Accuracy
   - C/A Code (zenith direction)
10cm
   - P Code (zenith direction)
10cm
   - Carrier Phase (zenith direction)
1mm
Update Rate
1Hz/5Hz/10Hz
Guidance Line Deviation
≤2.5cm
Application
Plow, ditch, ridge, seed, spray, harvest
Machinery applicable
Medium to large size
MTBF
1,000 hours
MTTR
2 hours
Communication
+
3G
HSPA+/UMTS/GSM/GPRS
433/915MHz
Operating Range (Radio)
≤20km
Physical
+
Power Consumption (typical)
≤90 W
12V battery (agricultural machinery)
Weight
≤22 kg
Operating Temperature
-10℃ ~ +70℃
AG960 Includes

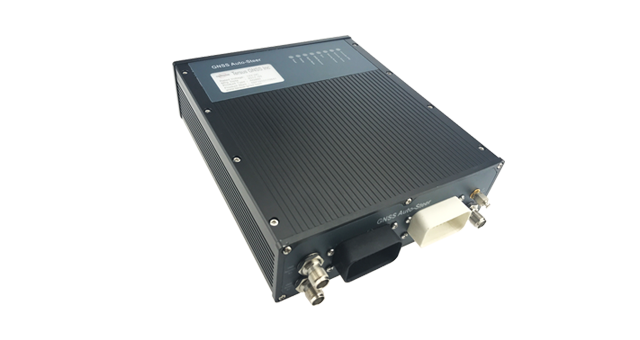

1 x Autopilot (Controller)
1 x Hydraulic valve adapter plate
1 x Coaxial rotation direction sensor bracket
1 x Computer panel bracket
1 x Autopilot (controller) adapter plate
1 x Data harness (white end harness)
2 x RF cables (3m)
1 x Radio receiver antenna mast/pedestal

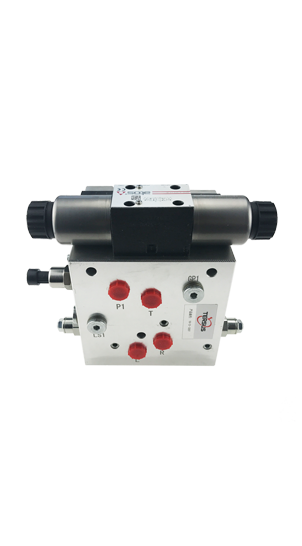

1 x Electromagnetic hydraulic valve
1 x Coaxial rotation direction sensor
2 x GNSS antennas

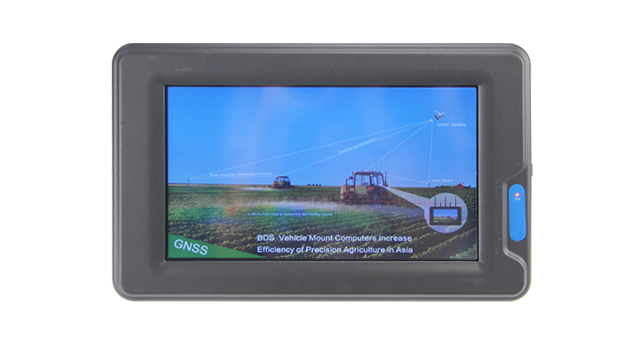

1 x Panel computer
Other: screws & nuts bag, insulating tape, strapping tape, double-sided adhesive tape, etc.
  • AG960 Datasheet
    Release Date: 2018-07-25 Version:2.1
  • AG960 AutoSteer System User Manual
    Release Date: 2018-04-20 Version:1.0
  • AG960 AutoSteer System Base User Manual
    Release Date: 2018-04-20 Version:1.0
  • AG960 AutoSteer System CORS Network Operation Instruction User Manual
    Release Date: 2018-04-20 Version:1.0
  • AG960 Brochure
    Release Date: 2018-04-18 Version:1.0
