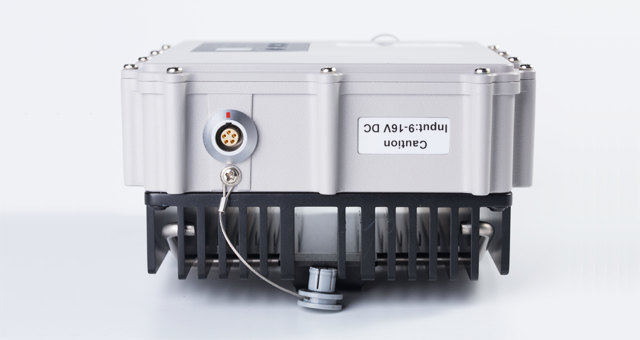

The Tersus RS05B radio station is a base radio solution for wireless applications. It provides reliable data communications for mission-critical applications where a combination of stability, superior performance and long range are required.
The RS05B provides high speed, high power, wireless data links and has been designed to survive the rigors of GNSS/RTK surveying and precise positioning applications. Up to 35W transmit power maximizes range and supports operation in difficult urban areas. The RS05B is equipped with a LED display and a keypad which is used for checking the operating status, changing the operating channel, and transmitting power level.
The RS05B provides high speed, high power, wireless data links and has been designed to survive the rigors of GNSS/RTK surveying and precise positioning applications. Up to 35W transmit power maximizes range and supports operation in difficult urban areas. The RS05B is equipped with a LED display and a keypad which is used for checking the operating status, changing the operating channel, and transmitting power level.
Features
Specifications
Documents
Videos

60 MHz bandwidth coverage over 410-470 MHz bands
Advanced data link design for high performance over entire bands
Multi-function user interface
It is designed for easy mobile use in demanding field conditions
Configurable transmit power
Supports 5W, 10W, 15W, 20W, 30W, and 35W power switching
General
-
Frequency Range
410MHz~470MHz
Operating Mode
Half-duplex
Channel Spacing
25KHz, 12.5KHz
Power Dissipation (typical)
     - High Power Level
35W
≤110W@DC12V
30W
≤100W@DC12V
20W
≤75W@DC12V
     - Low Power Level
15W
≤60W@DC12V
10W
≤45W@DC12V
5W
≤25W@DC12V
- Standby
≤1.5W@DC12V
Frequency Stability
≤±1.0ppm
Data Interface
LEMO 5pin
Receiver
+
Sensitivity
-114dBm@BER 10-3, 9600bps
Co-channel Rejection
>-12dB
Adjacent Channel Selectivity
>50dB@12.5KHz
Spurious Response Immunity
>55dB
Transmitter
+
Power Dissipation (typical)
     - High Power Level
35W
45.5±0.5dBm@DC12V
30W
44.8±0.5dBm@DC12V
20W
43±1dBm@DC12V
     - Low Power Level
15W
41.8±1dBm@DC12V
10W
40±1dBm@DC12V
5W
37.5±1dBm@DC12V
- Standby
≤1.5W@DC12V
Power Stability
±1dB
Harmonics
>50dB
Modem
+
Air Baud Rate
9600bps, 19200bps
Modulation Type
GMSK
Interface (Pin) Definition
+
Type
RS232
Pin 1
Power, 10.5V~16V DC
Pin 2
Power Ground, GND
Pin 3
RXD
Pin 4
Signal Ground, GND
Pin 5
TXD
Physical & Electrical
+
Size
186 x 140 x 73mm
Weight
≈1.5kg
Operation Voltage
10.5V~16V DC
Antenna Impedance
50Ω
Antenna Port
TNC female
Operation Temperature
-30℃~+60℃
Storage Temperature
-40℃~+70℃
-
RS05B Datasheet
Release Date: 2018-04-16 Version:2.0
-
Radio Station-RS05B User Manual
Release Date: 2018-04-20 Version:1.0
