BX306 GNSS Kit
With 2w/460Mhz Radio (RS460)
BX306 GNSS Kit_640x340px_191023_v1.2.png

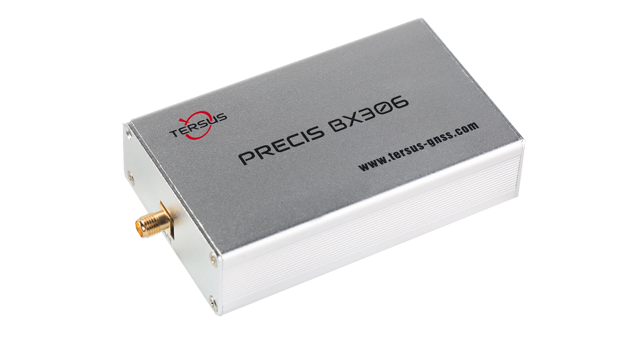

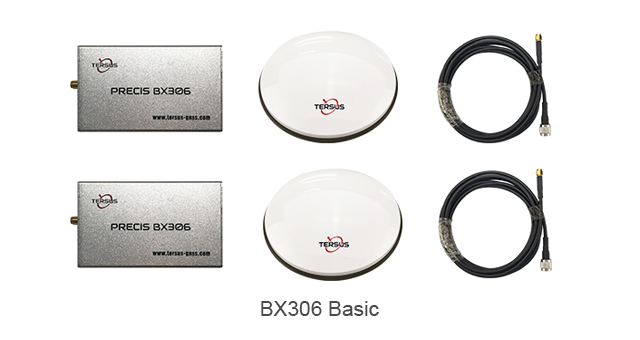

BX306 Kit consists of BX306 Basic and 2W Radio Option. BX306 GNSS receiver is a cost-efficient GNSS RTK receiver for cm-level positioning and providing accurate raw measurement output, which can be integrated with autopilots and inertial navigation units.
2W Radio Option 640x340px.png

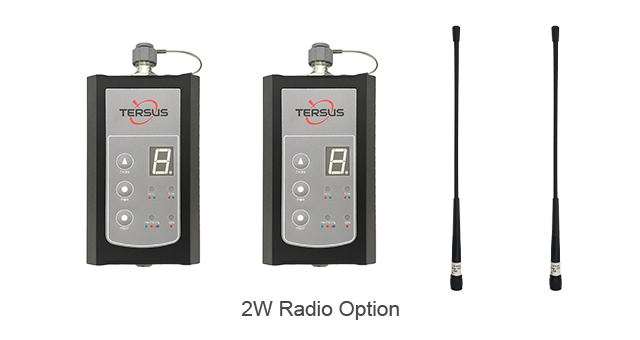

2W Radio option provides reliable data communications between 457 MHz and 467 MHz for mission-critical applications where a combination of stability, superior performance and long distance are required.  The BX306 Kit is ideal for surveying, AGVs, and agricultural applications.
*For detailed list of items, please check Item List-BX306 Kit
Features
Specifications
In the Box
Documents
Videos
Supports GPS L1/L2, GLONASS L1/L2, and BeiDou B1/B2
Supports 384 channels
Supports in-built 4GB memory, which makes data collection easy
Up to 20Hz RTK solution and raw data output
Pin-to-pin compatible with NovAtel OEM615
Log/command compatible with NovAtel protocol
Supports event mark and PPS
Signal Tracking
+
Single Antenna
GPS L1/L2
GLONASS L1/L2
BeiDou B1/B2
GNSS Channels
384
Positioning
+
Single Point Positioning Accuracy (RMS)
     - Horizontal
1.5m
     - Vertical
3.0m
RTK Positioning Accuracy (RMS)
     - Horizontal
10mm + 1ppm
     - Vertical
15mm + 1ppm
Observation
+
C/A Code (zenith direction)
10cm
P Code (zenith direction)
10cm
Carrier Phase (zenith direction)
1mm
Performance
+
Time to First Fix
     - Cold Start
<50s
     - Warm Start
<30s
Timing Accuracy (RMS)
20ns
Velocity Accuracy (RMS)
0.03m/s
Initialization (typical)
<10s
Initialization Reliability
>99.9%
Physical & Electrical
+
Size
100.2 x 57.4 x 24 mm
Weight
23g
Input Voltage
5~28V DC
Power Consumption (typical)
2.8W
Active Antenna Input Impedance
50Ω
Antenna Connector
MCX female x1
COM Baud Rate
Up to 921600bps
Pin-to-Pin Compatible
NovAtel 615
Operating Temperature
-40℃ ~ +85℃
Data
+
Correction
RTCM 2.x/3.x/CMR/CMR+
Output
NMEA-0183; Tersus Binary Format
Max. Update Rate
20Hz
Log & Command Compatible
NovAtel Protocol
Storage
In-built 4GB memory
Communication
+
Serial Ports
LVTTL x2
USB Ports
USB device x1
CAN Ports
ISO/DIS 11898 x2 *
PPS Ports
LVTTL x1
Event Mark
LVTTL x2 *
Remarks:
* This port’s function is related to firmware version.

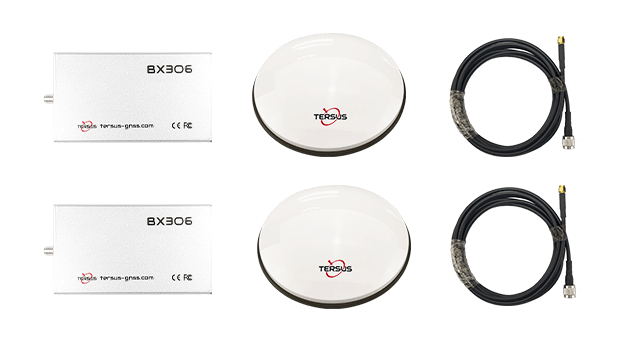

BX306 GNSS Kit includes
2 x BX306 RTK receiver
2 x 2pin power cable
2 x 20pin external cable
2 x UART to USB converter
2 x AX3702 GNSS antenna
2 x TNC-J to SMA cable 3m (GNSS antenna cable)
2 x 2W/460MHz radio
2 x 2W/460MHz radio antenna
1 x Bullet-DC to Alligator Clips
1 x USB to 2W-Radio-5pin cable with 2pin power & 6pin COM
1 x Bullet-DC to 2W-Radio-5pin cable with 2pin power & 6pin COM
1 x carrying case
  • BX306 GNSS Kit Datasheet
    Release Date: 2019-10-23 Version:1.2
  • User Manual For BX Series GNSS Receiver
    Release Date: 2019-09-11 Version:2.3
  • GNSS OEM Boards & Receivers Brochure
    Release Date: 2019-08-30 Version:2.2
  • Item List - BX306 GNSS kit
    Release Date: 2019-10-24 Version:1.3
