Multi-frequency, multi-constellation

Tracks all current GNSS constellations and almost all frequencies. Provides flexible positioning options.

TAP Service

Directly receives corrections from satellites, ensuring 2.5cm accuracy with no need for local RTK base stations or CORS.

Tersus ExtremeRTK™ GNSS technology

Tersus self-developed technology delivers centimeter-level RTK positioning accuracy even in challenging environments.

Anti-interference

Self-developed advanced algorithms provide real-time interference visualization and mitigation.

Easy to integrate

Flexible interfaces such as COM, USB, CAN. Support PPS and event mark. Pin-to-pin compatible with major GNSS OEM boards on the market.

Low Power Consumption

Standard power consumption is down to 1.9W, ideal for integrated applications with a high demand for low power consumption.

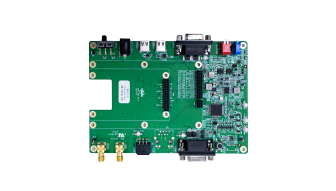

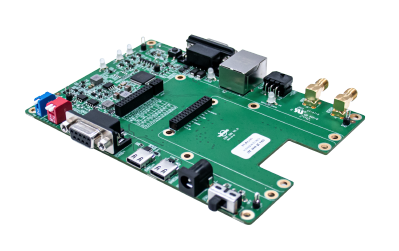

The BX50M-TAP is a compact multi-frequency GNSS OEM board that delivers robust centimeter-level positioning with Tersus ExtremeRTK™ GNSS technology. It adopts the Tersus Antares Chip and provides real-time interference visualization and mitigation. It tracks all current GNSS constellations, including GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS, and IRNSS, to ensure maximum flexibility.

The BX50M-TAP supports TAP, the satellite-based precise point positioning service developed by Tersus GNSS. With TAP, the BX50M-TAP doesn’t need to work with the local RTK base station or CORS but directly receives corrections broadcast by the satellites, such as ephemeris errors, satellite clock errors, etc.

The BX50M-TAP features low power consumption, flexible interfaces, intelligent hardware design, and standard log/command formats for easy integration.

Documents

Datasheet_BX50M-TAP
Release Date: 2024-09-05 Version:1.4
Brochure_GNSS Boards & Module
Release Date: 2024-08-19 Version:3.5
User Manual_BX50M-TAP
Release Date: 2024-11-20 Version:1.6
Logs and Commands Reference_BX50-Series
Release Date: 2024-09-12 Version:2.4
