AX3705
Helix Antenna
GNSS Accessories - AX3705 640x340px.png

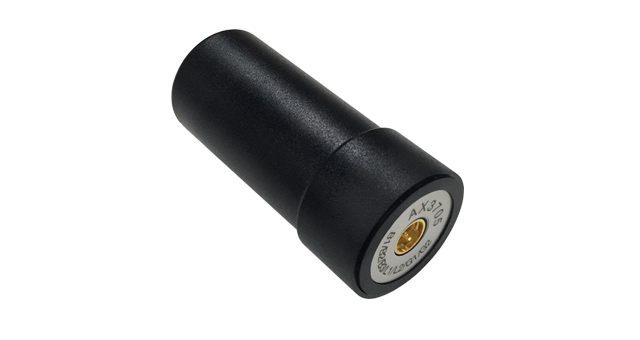

The AX3705 is a helix antenna that supports four satellite constellations and dual frequencies, which is designed for UAV systems and mobile devices. It can be used in aerial photography, telemetry technology, disaster monitoring, traffic patrol, security monitoring, etc.
This helix antenna has exceptional pattern control, polarization purity, and high efficiency in a very compact form factor. The antenna has a high gain and a wide beam width to ensure that satellite signals can be received at low elevation angles.
Features
Specifications
Documents
Videos
Supports GPS L1/L2, GLONASS L1/L2, BeiDou B1/B2 signal reception
High stability and high repeatability at phase center
High gain antenna having superior tracking performance at low elevation angles
Very low noise figure
SMA male connector
Ground plane independent
Antenna
+
Frequencies
GPS L1/L2
GLONASS L1/L2
BeiDou B1/B2
Peak Gain
1217-1257MHz: 2dBi
1559-1610MHz: 2.5dBi
Polarization
RHCP
Axial Ratio
≤3dB
Impedance
50Ω
Output VSWR
≤2.0
LNA
+
LNA Gain
33dB(typical)
Noise Figure
≤1.5dB
Output VSWR
≤2.0
Operation Voltage
3.3V~12V DC
Operation Current
55mA (max)
Group Delay Ripple
< 15ns
Mechanical
+
Size
φ 27.5 x 60mm
Connector
SMA male
Weight
≤19g
Environmental
+
Operating Temperature
-40℃~+70℃
Storage Temperature
-40℃~+70℃
Humidity
95% not condensing
Dust & Waterproof
IP65
  • AX3705 Datasheet
    Release Date: 2018-08-31 Version:2.2
