BX316 GNSS Kit
With 915MHz Radio (Eagle)
GNSS Easy Kits - BX316 KIT HRS 640x340px.png

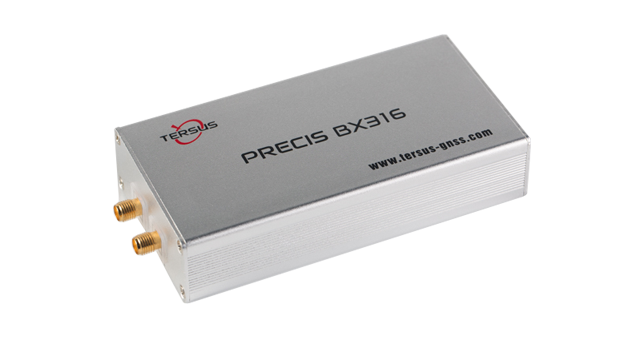

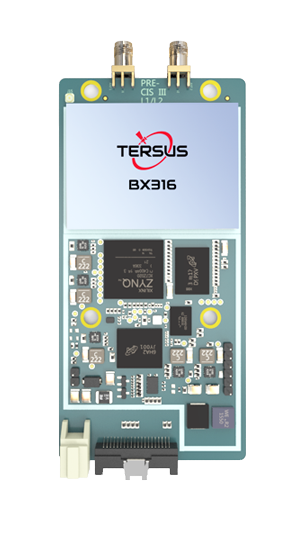

The BX316 is a GNSS RTK board for providing accurate positioning and heading information. It supports multi-constellation (GPS L1/L2, GLONASS L1/L2, and BeiDou B1/B2) signals and can output continuous and reliable RTK position and headings, even in harsh environments. The BX316 commands and logging are compatible with NovAtel protocols. Ethernet, USB, LVTTL, RS232, CAN, PPS, and event mark are supported. In-built 4GB memory supports data collection. The BX316 offers real-time, cost-efficient, and cm-level positioning as well as flexible interfaces for a variety of applications, such as precision navigation, precision agriculture, surveying, and UAVs.
GNSS Easy Kits - Eagle电台 640x340px.png

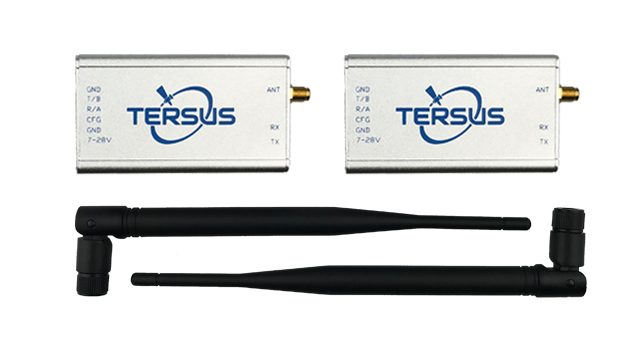

About the 915MHz Radio (Eagle)The Eagle radio is available in 915Mhz. It is used for transmitting correction data from a base station to a rover. Compared to normal radios, the Eagle radio has higher transmitted power and so provides longer communication range.
Features
Specifications
In the Box
Documents
Videos
Supports RTK positioning mode or RTK positioning + heading mode
The two modes are software configurable
Command compatible with NovAtel protocol
Supports 20Hz RTK solution updates and raw data outputs
Supports IMU raw data output
Supports in-built 4GB memory, which makes data collection easy
Supports PPS output and event mark input
Signal Tracking
+
Single Antenna
GPS L1/L2
GLONASS L1/L2
BeiDou B1/B2
Dual Antenna
Primary: GPS L1/L2, GLONASS L1/L2
Secondary: GPS L1, GLONASS L2
or
Primary: GPS L1/L2, BeiDou B1/B2
Secondary: GPS L1, BeiDou B2
Positioning
+
Standard (RMS)
     - Horizontal
1.5m
     - Vertical
3.0m
RTK (RMS)
     - Horizontal
10mm + 1ppm
     - Vertical
15mm + 1ppm
Observation
+
C/A Code (zenith direction)
10cm
P Code (zenith direction)
10cm
Carrier Phase (zenith direction)
1mm
Heading 1m Baseline (RMS)
0.15°
Physical & Electrical
+
Size
108 x 54 x 12mm
Weight
50g
Input Voltage
5V~12V DC
Power Consumption (typical)
3.5W
Active Antenna Input Impedance
50Ω
Antenna Connector
SMA female x2
COM Baud Rate
Up to 921600bps
Max. Update Rate
20Hz
Operating Temperature
-40℃ ~ +85℃
Log & Command Compatible
NovAtel Protocol
Data
+
Storage
In-built 4GB memory
Correction
RTCM 2.x/3.x/CMR/CMR+
Output
NMEA-0183; Tersus Binary Format
Max. Update Rate
20Hz
Log & Command Compatible
NovAtel Protocol
Communication
+
Serial Ports
LVTTL x2 or RS232 x2
USB Ports
USB device x1
CAN Ports
ISO/DIS 11898 x2 *
PPS Ports
LVTTL x1
Event Mark
LVTTL x2 *
Ethernet
10/100M Base-T x1 *
Remarks:
* This port’s function is related to firmware version.

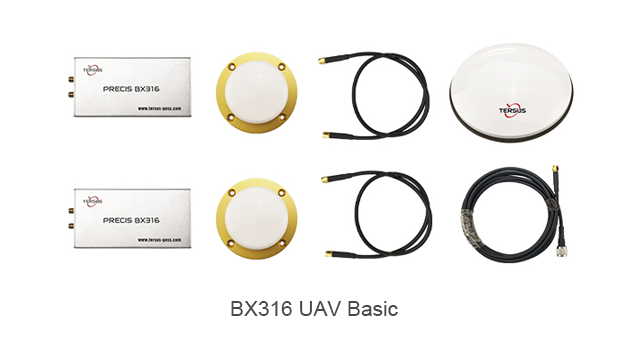

BX316 GNSS Kit includes
2 x BX316 RTK receivers
3 x GNSS antennas with cables
2 x 915 MHz radio modems (Eagle)
2 x 915 MHz antennas
2 x BX316 radio cable assemblies
2 x 40-pin external cables
2 x UART TTL-USB converters
2 x power cables
  • BX316 GNSS Kit Datasheet
    Release Date: 2018-09-04 Version:2.2
  • User Manual For BX Series GNSS Receiver
    Release Date: 2018-07-03 Version:1.0
  • Log & Command Reference for Tersus BX GNSS OEM Boards
    Release Date: 2018-10-30 Version:2.0
  • GNSS OEM Boards & Receivers Brochure
    Release Date: 2018-04-18 Version:2.0
BX316 Kit HRS Quick Start Video - Base+Rover
BX316 Quick Start Video - Collect Static Data
Demo of Logging Event Mark (BX316 GNSS RTK OEM Board)
Log data with external data logger
