BX306 GNSS Kit (HRS)
With High-end Radio (RS05R)
GNSS Easy Kits - BX306 KIT (1) 640x340px.png

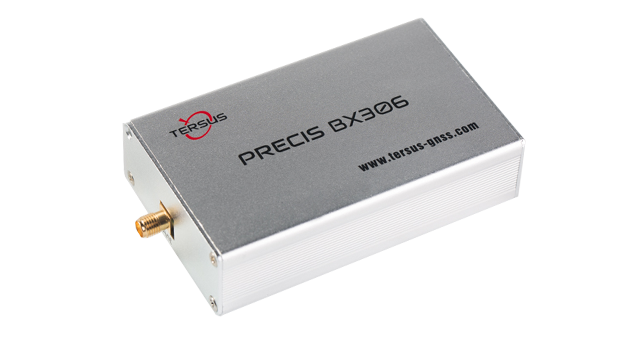

The BX306 is a cost-efficient GNSS RTK board for cm-level positioning and providing accurate raw measurement output, which can be integrated with autopilots and inertial navigation units.

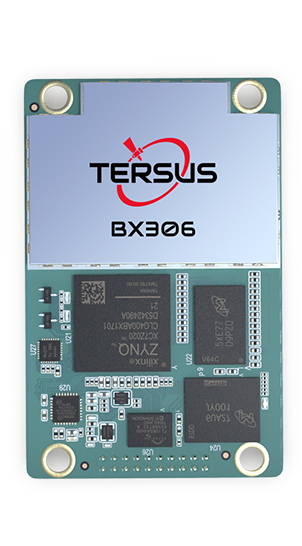

The BX306 board supports three constellations (GPS L1/L2, GLONASS G1/G2, and BeiDou B1/B2) to improve the continuity and reliability of the RTK solution even in harsh environments. In-built 4GB memory supports data collection. It features compatibility with other GNSS boards in the market via flexible interfaces, smart hardware design, and commonly used log/command formats.
GNSS Accessories - RS05R 640x340px.png

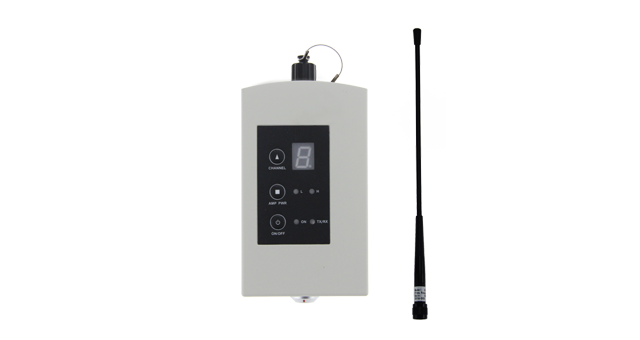

About the RS05R High-end RadioThe Tersus radio station RS05R is a rover radio solution for wireless applications. It provides reliable data communications for mission-critical applications where a combination of stability, superior performance and long communication range are required. The RS05R is a lightweight, ruggedized UHF receiver designed for digital radio communications between 410 MHz and 470 MHz in either 12.5 kHz or 25 kHz channels, which can be widely used in GNSS/RTK surveying and precise positioning systems. The RS05R is equipped with a LED display and a keypad, which can be used for checking the operating status, changing the operating channel, and transmitter power level.
Features
Specifications
In the Box
Documents
Videos
Supports GPS L1/L2, GLONASS G1/G2, and BeiDou B1/B2
Supports in-built 4GB memory, which makes data collection easy
Up to 20Hz RTK solution and raw data output
Supports IMU raw data output
Pin-to-pin compatible with NovAtel OEM615
Log/command compatible with NovAtel protocol
Supports event mark and PPS
Signal Tracking
+
Single Antenna
GPS L1/L2
GLONASS G1/G2
BeiDou B1/B2
Positioning
+
Standard (RMS)
     - Horizontal
1.5m
     - Vertical
3.0m
RTK (RMS)
     - Horizontal
10mm + 1ppm
     - Vertical
15mm + 1ppm
Observation
+
C/A Code (zenith direction)
10cm
P Code (zenith direction)
10cm
Carrier Phase (zenith direction)
1mm
Performance
+
Time to First Fix
     - Cold Start
<50s
     - Warm Start
<30s
Timing Accuracy (RMS)
20ns
Velocity Accuracy (RMS)
0.03m/s
Initialization (typical)
<10s
Initialization Reliability
>99.9%
Physical & Electrical
+
Size
46 x 71 x 12mm
Weight
23g
Input Voltage
3.3V DC
Power Consumption (typical)
2.8W
Active Antenna Input Impedance
50Ω
Antenna Connector
MCX female x1
COM Baud Rate
Up to 921600bps
Pin-to-Pin Compatible
NovAtel 615
Operating Temperature
-40℃ ~ +85℃
Data
+
Correction
RTCM 2.x/3.x/CMR/CMR+
Output
NMEA-0183; Tersus Binary Format
Max. Update Rate
20Hz
Log & Command Compatible
NovAtel Protocol
Storage
In-built 4GB memory
Communication
+
Serial Ports
LVTTL x2
USB Ports
USB device x1
CAN Ports
ISO/DIS 11898 x2 *
PPS Ports
LVTTL x1
Event Mark
LVTTL x2 *
Remarks:
* This port’s function is related to firmware version.
BX306 GNSS Kit (HRS) includes
2 x BX306 RTK receivers
2 x 20-pin external cables
2 x UART TTL-USB converters
2 x TTL-RS232 converters
2 x RS05R radio station cable assemblies
2 x RS05R radio station antennas
2 x RS05R radio station modems
2 x 3m GNSS antenna cables
2 x GNSS antennas
2 x power cables
  • BX306 GNSS Kit (HRS) Datasheet
    Release Date: 2018-07-03 Version:2.0
  • User Manual For BX Series GNSS Receiver
    Release Date: 2018-07-03 Version:1.0
  • Log & Command Reference for Tersus BX GNSS OEM Boards
    Release Date: 2018-04-20 Version:1.0
  • GNSS OEM Boards & Receivers Brochure
    Release Date: 2018-04-18 Version:2.0
GNSS RTK Receiver Road Test Demo (BX306)
Log data with external data logger
