915MHz Radio Eagle
Wireless Data Transceiver
Eagle 640x340px.png

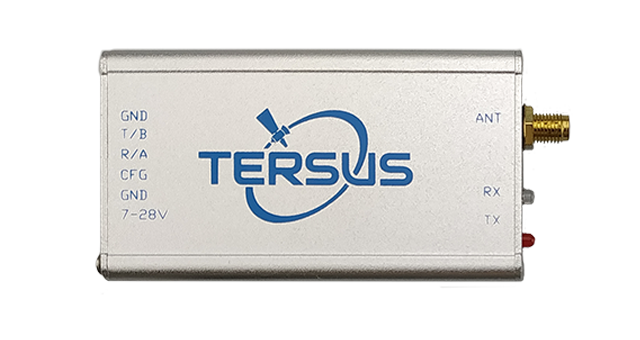

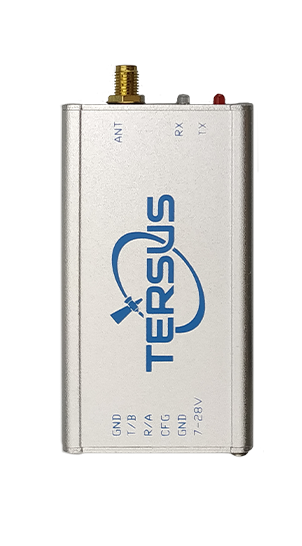

The Tersus 915MHz radio Eagle is a radio solution for both the base and the rover. It provides reliable data communications for mission-critical applications where a combination of stability, superior performance and long distance are required.The 915MHz radio Eagle is a ultralight weight, ruggedized UHF receiver designed for digital radio communications at 915MHz, which can be used widely in GNSS/RTK surveying and precise positioning system applications. The Eagle radio is equipped with two LEDs which indicate the status or transmitting or receiving.
Features
Specifications
Documents
Videos
915MHz operating frequency
Surface Acoustic Wave filter for anti-interference
High air link rate
Supports up to 1Mbps air baud rate
Supports up to 115200bps serial baud rate
Ultralight weight
General
-
Frequency
915MHz
Operating Mode
Half-duplex
Operation Voltage:
7V~28V
Power Consumption (typical)
– Transmitting: 1.2W@DC12V
– Receiving: < 0.6W@DC12V
Dimension
100x47x21mm
Weight
≈80g
Operation Temperature:
-40℃~+85℃
Storage Temperature:
-40℃~+85℃
Antenna Port
SMA
Antenna Impedance
50Ω
Serial Port
TTL
Receiver
+
Sensitivity
-125dBm@20kbps
-112dBm@100kbps
Adjacent Channel Selectivity
≥ 65dB
Distortion
≤ 5%
Bit Error Rate
≤ 0.001%
Transmitter
+
Frequency Stability (at 25℃)
≤±5ppm
RF Output Power
1200mW
Output Current
≤1000mA
Modulation Distortion
≤ 3%
Carrier Frequency Tolerance
≤ 5*10 -6
Modem
+
Air Baud Rate
20Kbps to 1Mbps
Serial Baud Rate
1200bps to 115200bps
Modulation Type
QPSK/BPSK +DSSS
Interface (Pin) Definition
+
Type
TTL
Pin 1
GND
Pin 2
T/B
Pin 3
R/A
Pin 4
CFG
Pin 5
GND
Pin 6
7-28V
  • 915MHz Radio Eagle Datasheet
    Release Date: 2018-12-25 Version:1.0
